| Chassis |
|
| Frame: |
Smartformed aluminium frame, 160/95mm travel (Flow/Elevation Mode), 1.5" head tube, BB30 bottom bracket, ISCG03 chain guide mount, 12 x 142mm thru axle |
| Fork: |
Rock Shox Pike RCT3, Solo Air suspension system (adjustable), 160mm travel, 1.5" aluminium steerer, 15 x 100mm thru axle, adjustable rebound and compression |
| Shock: |
FOX Dyad RT2, air suspension system (adjustable) with new tune, adjustable rebound and compression, remote control |
|
|
| Drivetrain/Brakes |
|
| Shifters: |
SRAM X7, 2 x 10-speed |

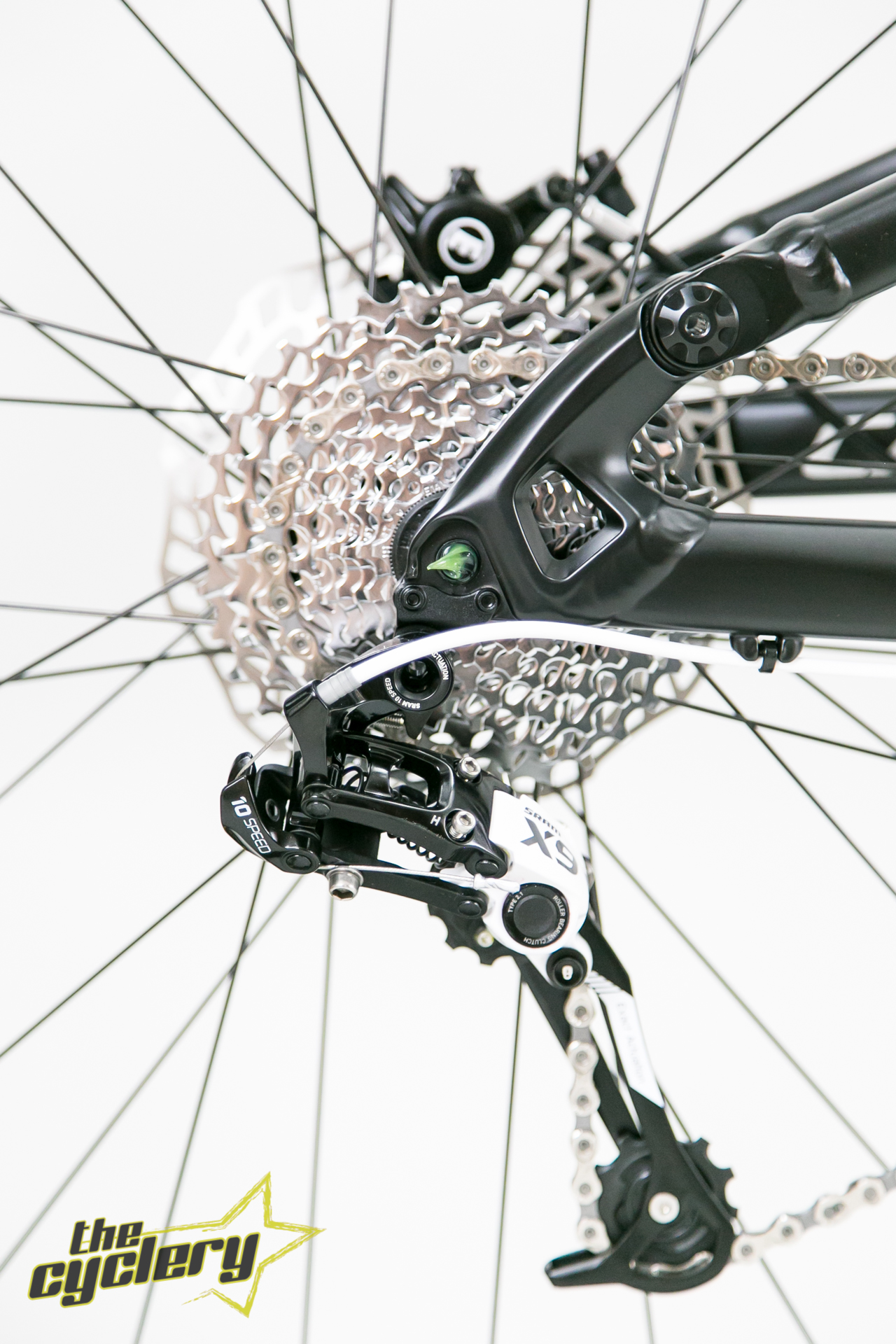

| Rear derailleur: |
SRAM X9, type II |
| Front derailleur: |
SRAM X7, direct mount |

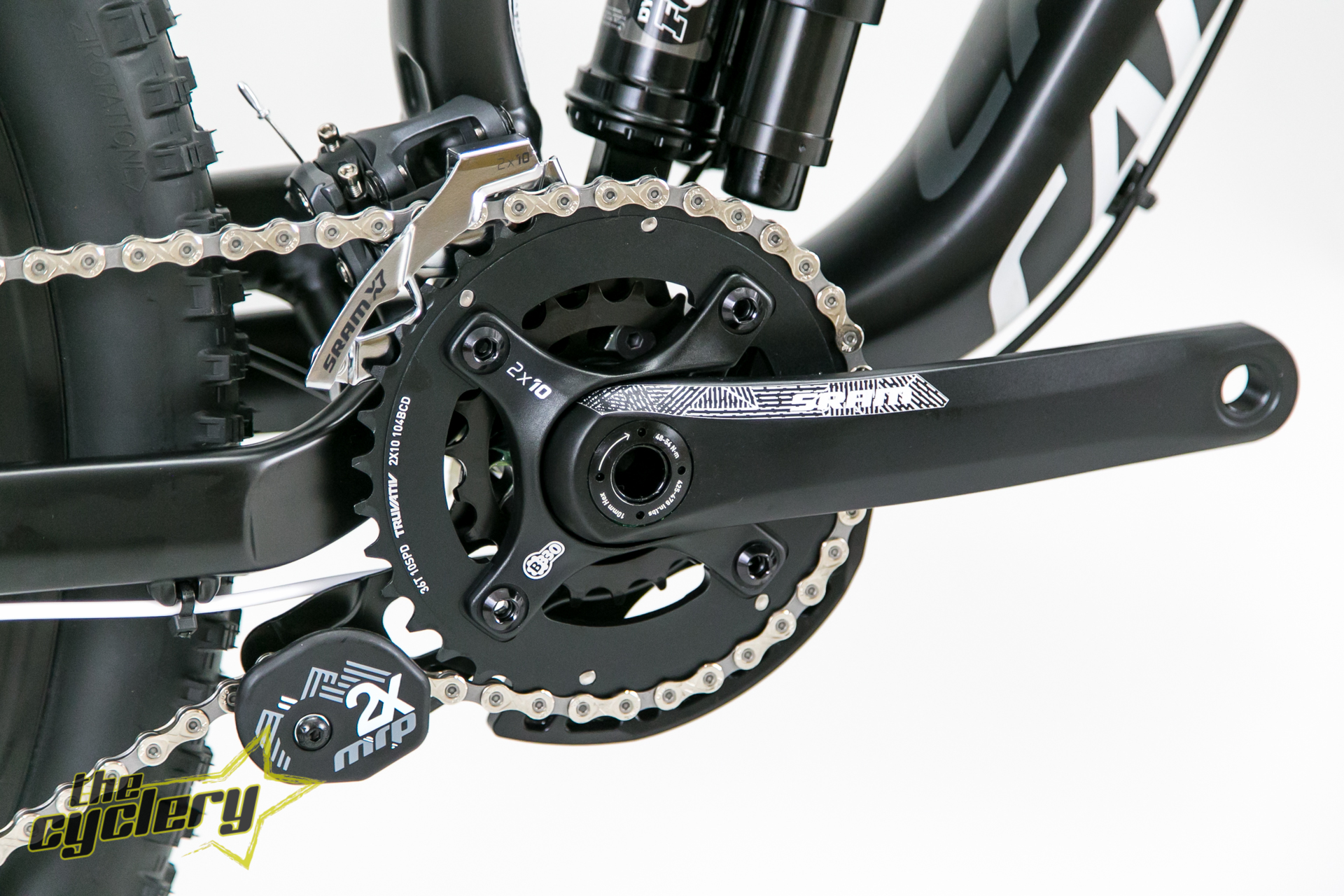

| Crankset: |
SRAM S1400, 36/22 teeth chain rings with MRP X2 chain guide |
| Bottom bracket: |
SRAM BB30 |
| Pedals: |
- |
| Chain: |
KMC X10 |
| Cogs: |
SRAM PG-1030, 10-speed, 11-36 teeth |

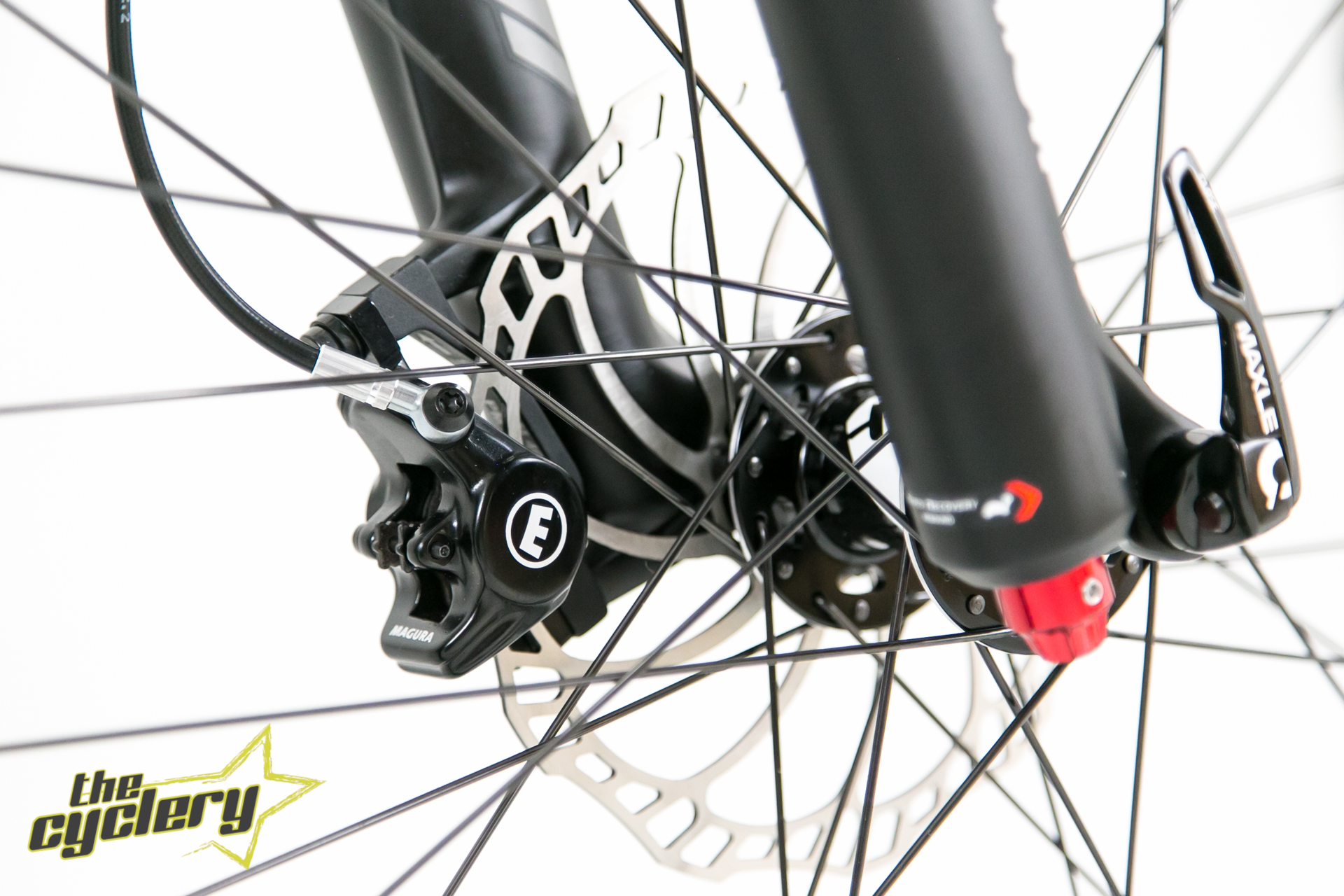

| Brakes: |
Magura MT2, hydraulic disc brakes, 180/180mm discs (f/r) |
| Brake levers: |
Magura MT2 |
|
|
| Wheels |
|
| Front hub: |
SRAM X9, 15 x 100mm thru axle |
| Rear hub: |
SRAM X9, 12 x 142mm thru axle |

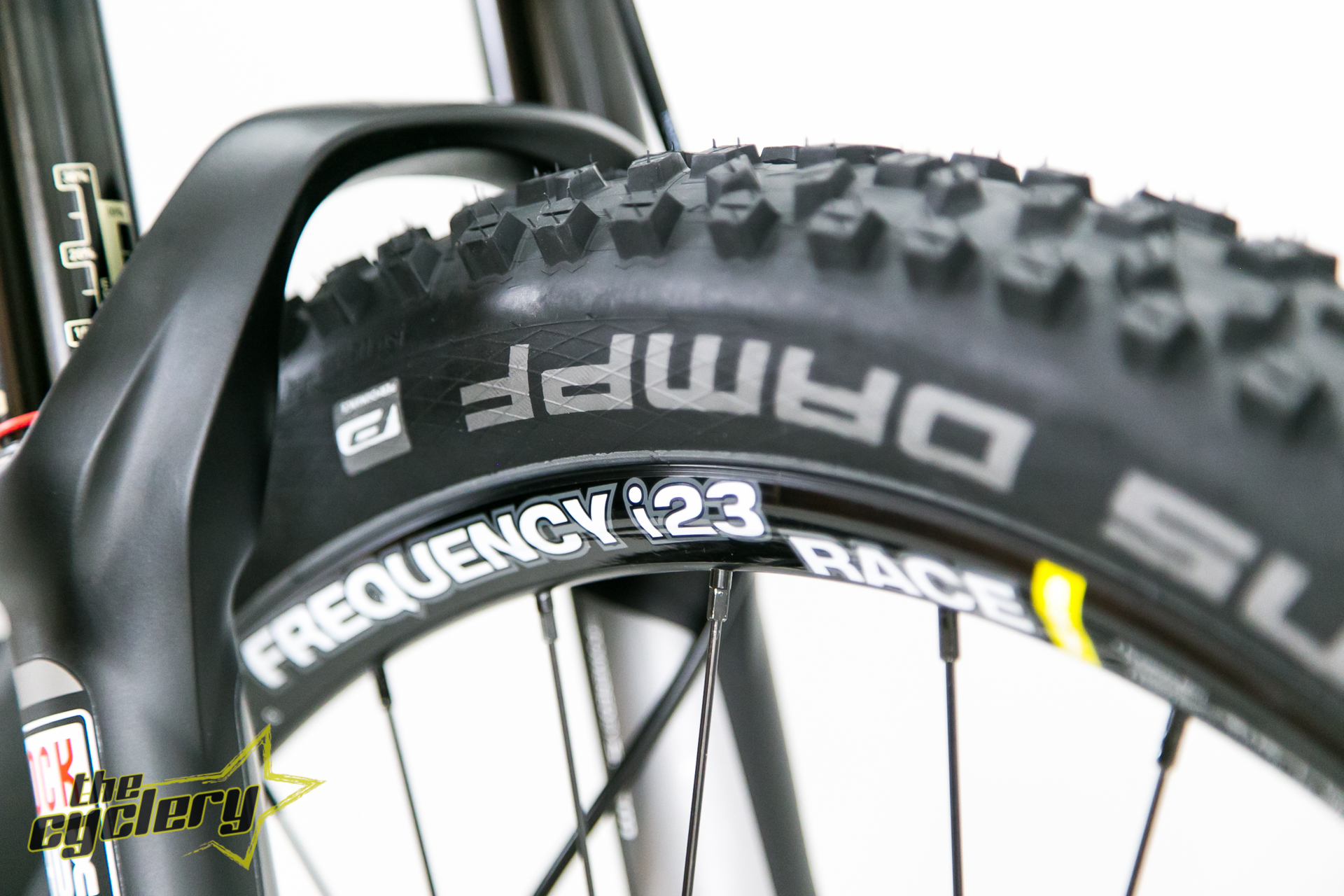

| Rims: |
WTB ST i23 TCS, tubeless ready |
| Tires: |
Schwalbe Nobby Nic Performance, tubeless ready, 27,5 x 2,25" |
|
|
| Components |
|

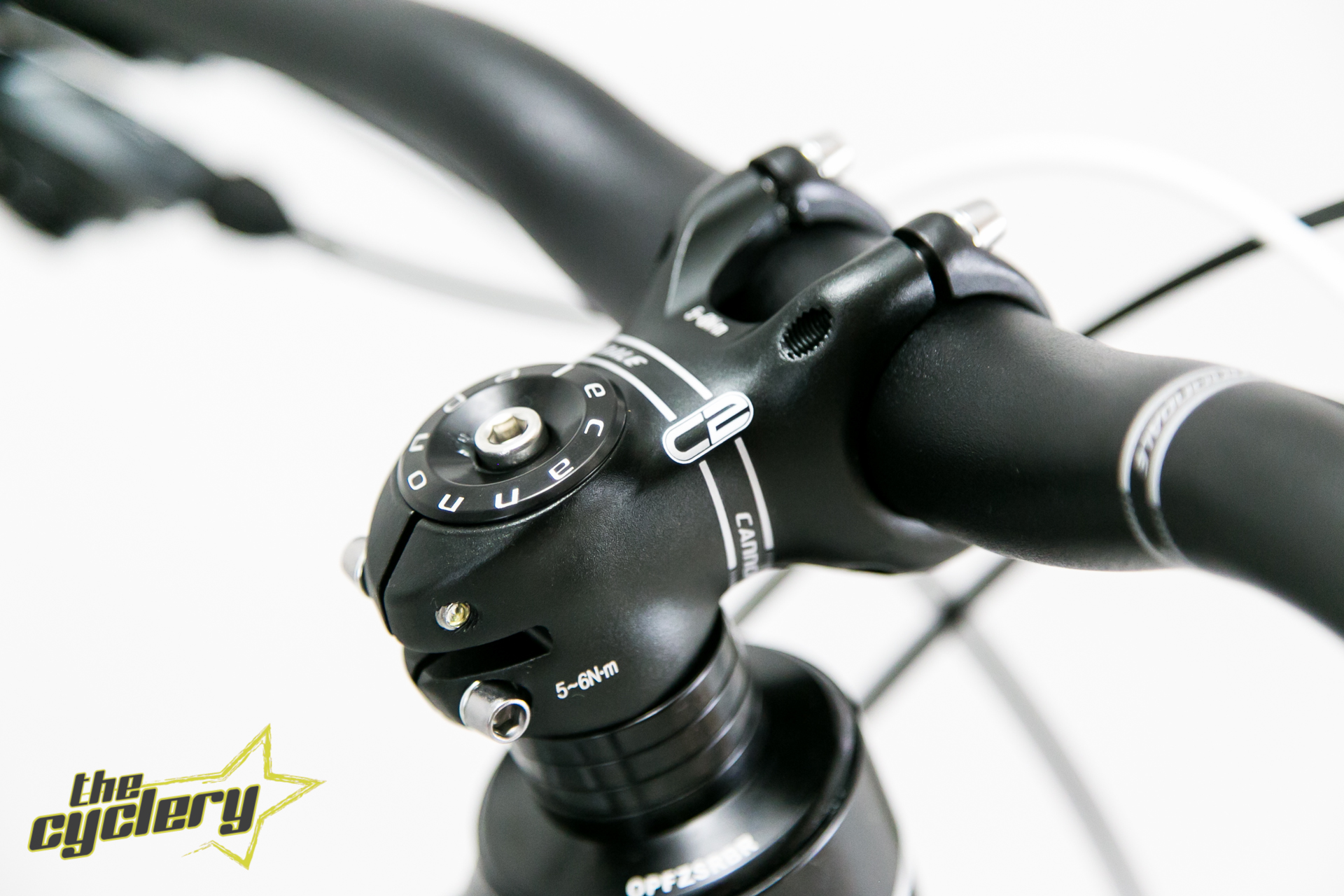

| Stem: |
Cannondale C1 1.5", 31,8mm diameter |

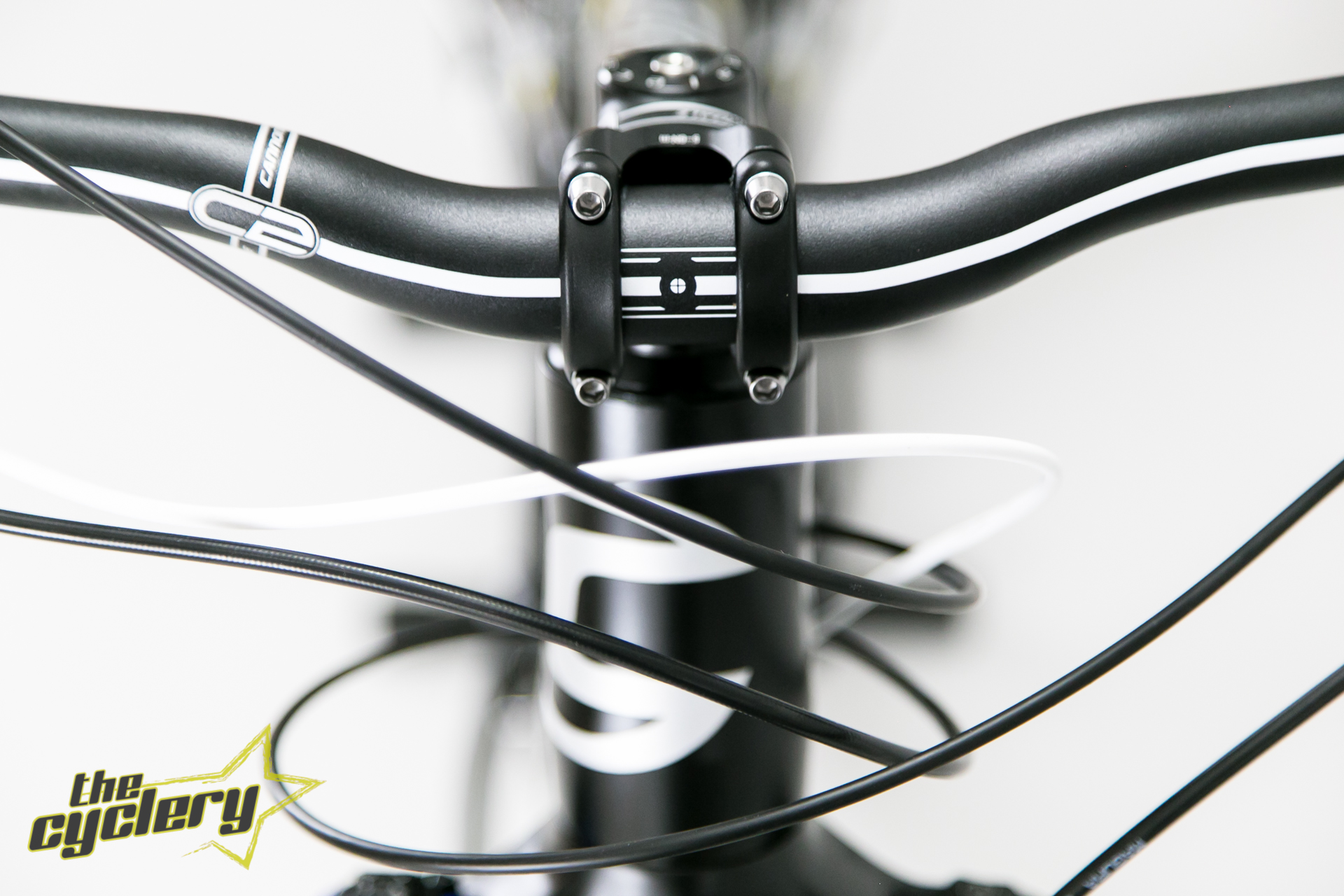

| Handlebar: |
Cannondale C2 Riser, 2014 aluminium, 18mm rise, 740mm width, 31,8mm diameter |
| Headset: |
Tange Seiki, 1.5" integrated |
| Saddle: |
WTB Silverado Comp |
| Seat post: |
X-Fusion Hilo Dropper, adjustable height with remote control |
| Other: |
high pressure air pump (for suspension setup) |
