| Chassis |
|
| Frame: |

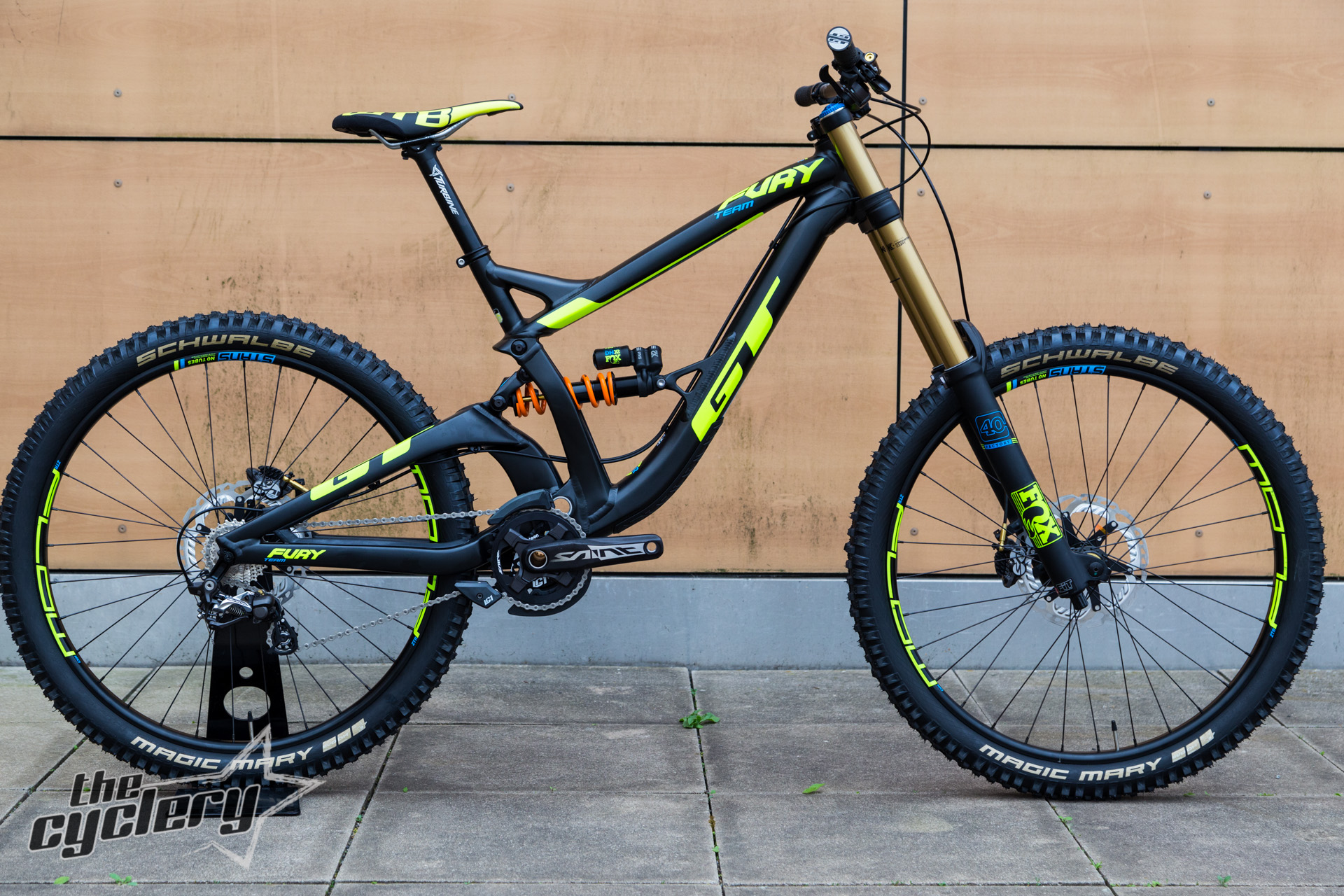

Downhill frame with COR design (Centered on Rider) and 27.5" specific geometry, 6069er T6 aluminum, 210mm travel via independet drivetrain system, 1.5" head tube, ISCG03 chain guide mount, 12 x 150mm thru axle |
| Fork: |
FOX Factory 40 Float 27.5, air suspension system (adjustable), 203mm travel, 20 x 110mm thru axle, adjustable rebound and high-/low-speed compression |
| Shock: |
FOX Factory DHX2, adjustable rebound and high-/low-speed compression, bottom-out |
|
|
| Drivetrain/Brakes |
|
| Shifters: |
Shimano Saint, 10-speed |
| Rear derailleur: |
Shimano Saint Shadow+, direct mount |
| Chain guide: |
e.thirteen LG1+ with bash guard |
| Crankset: |
Shimano Saint, 36 teeth chain ring, 165mm length |
| Bottom bracket: |
Shimano Saint, 83mm housing |
| Pedals: |
- |
| Chain: |
Shimano CN-HG95 |
| Cogs: |
Shimano Ultegra (CS-6700), 10-speed, 11-25 teeth |
| Brakes: |
Shimano Saint (BR-M820), hydraulic disc brakes, 203mm Centerlock IceTech discs (f/r) |
| Brake levers: |
Shimano Saint (BL-M820) |
|
|
| Wheels |
|
| Front hub: |
Shimano Saint (HB-M820), 20 x 110mm thru axle, Centerlock mount |
| Rear hub: |
Shimano Saint (FH-M825), 12 x 150mm thru axle, Centerlock mount |
| Rims: |
Stan's NoTubes Flow MK3 27.5", 32 hole |
| Tires: |
Schwalbe Magic Mary, 27.5 x 2.35" (f/r) |
|
|
| Components |
|
| Stem: |
Race Face Atlas, direct mount, 30/50mm length, 31,8mm diameter |
| Handlebar: |
Race Face Atlas, 1.5" rise, 785mm width, 31,8mm diameter |
| Headset: |
FSA Orbit Z 1.5R, 1.5" >>> 1 1/8" reducer headset, sealed bearings |
| Saddle: |
WTB Silverado Pro, cromoly rails |
| Seat post: |
Race Face Turbine, 31,6 x 400mm |
| Other: |
- |
|
|
