Chassis | |

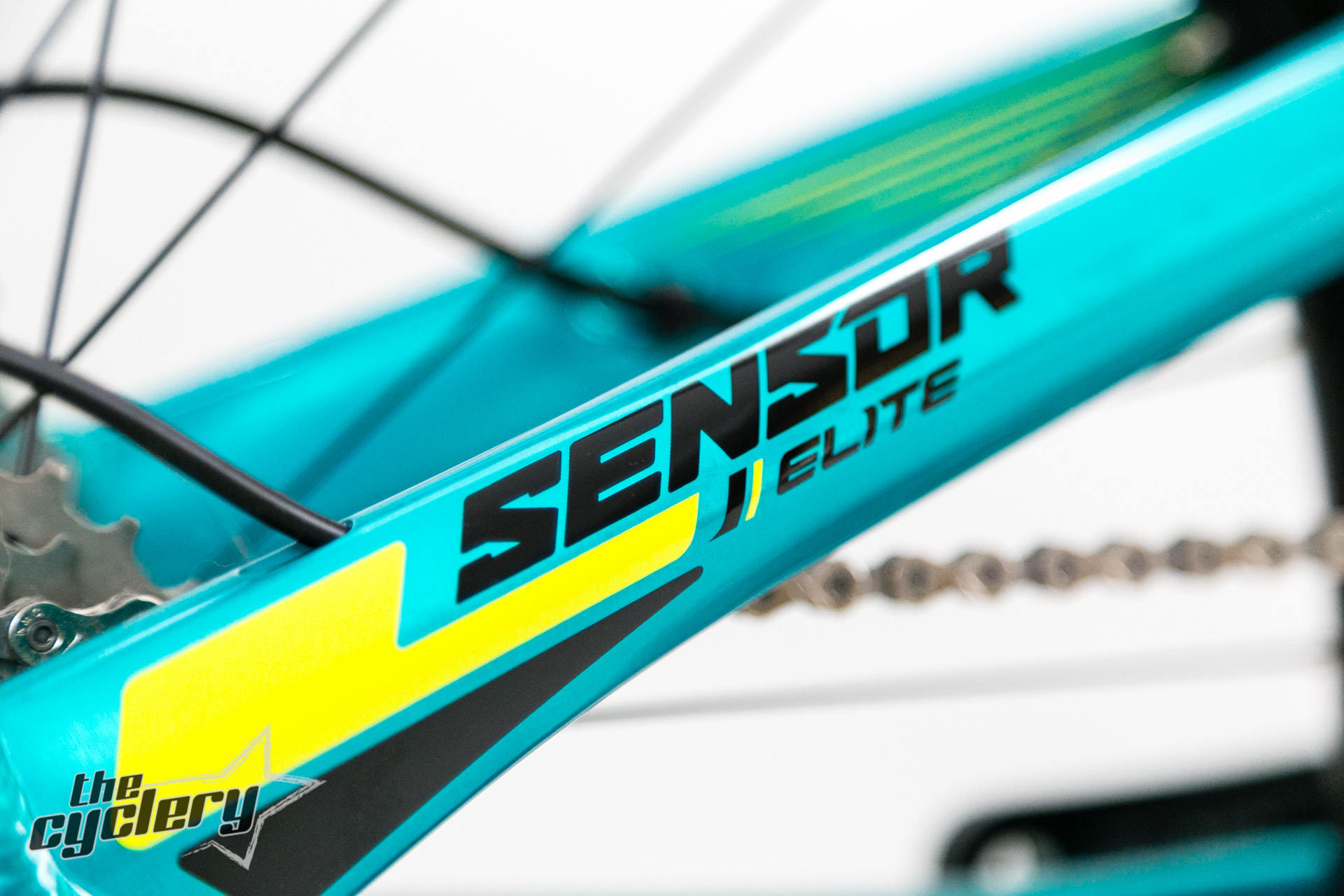

Frame: | Trail frame with COR design (Centered on Rider), hydroformed 6069 aluminum, 130mm travel via AOS-system (Angle Optimized Suspension), tapered head tube, 12 x 142mm thru axle |
Fork: | Rock Shox Sektor TK, Solo Air spring system (adjustable), 140mm travel, 15 x 100mm thru axle, adjustable rebound and lock-out |

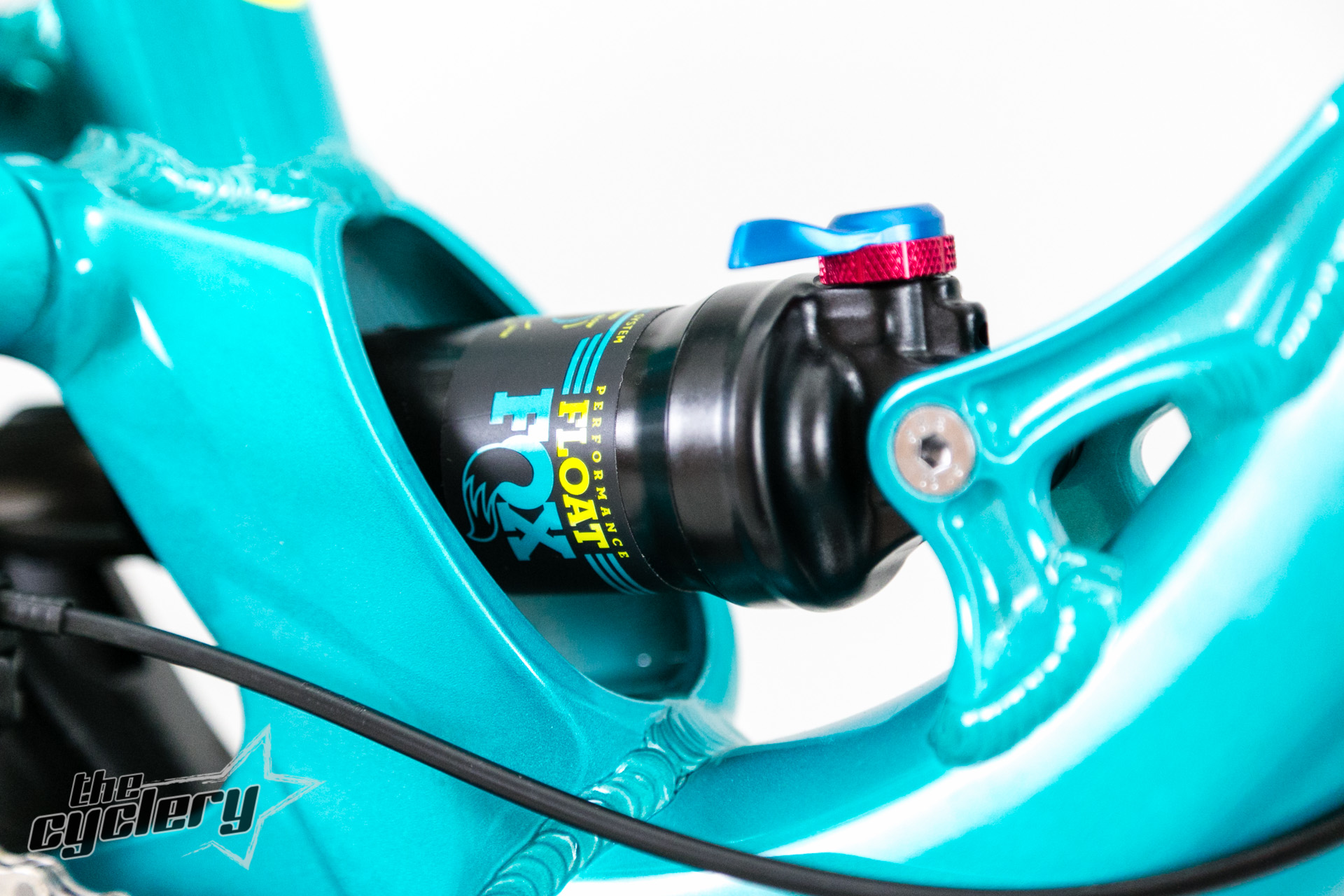

Shock: | FOX Float DPS (Dual Piston System) Performance, air spring system (adjustable), adjustable rebound and lock-out |
| |
Drivetrain/Brakes | |
Shifters: | Shimano Deore (SL-M610), 2 x 10-speed |

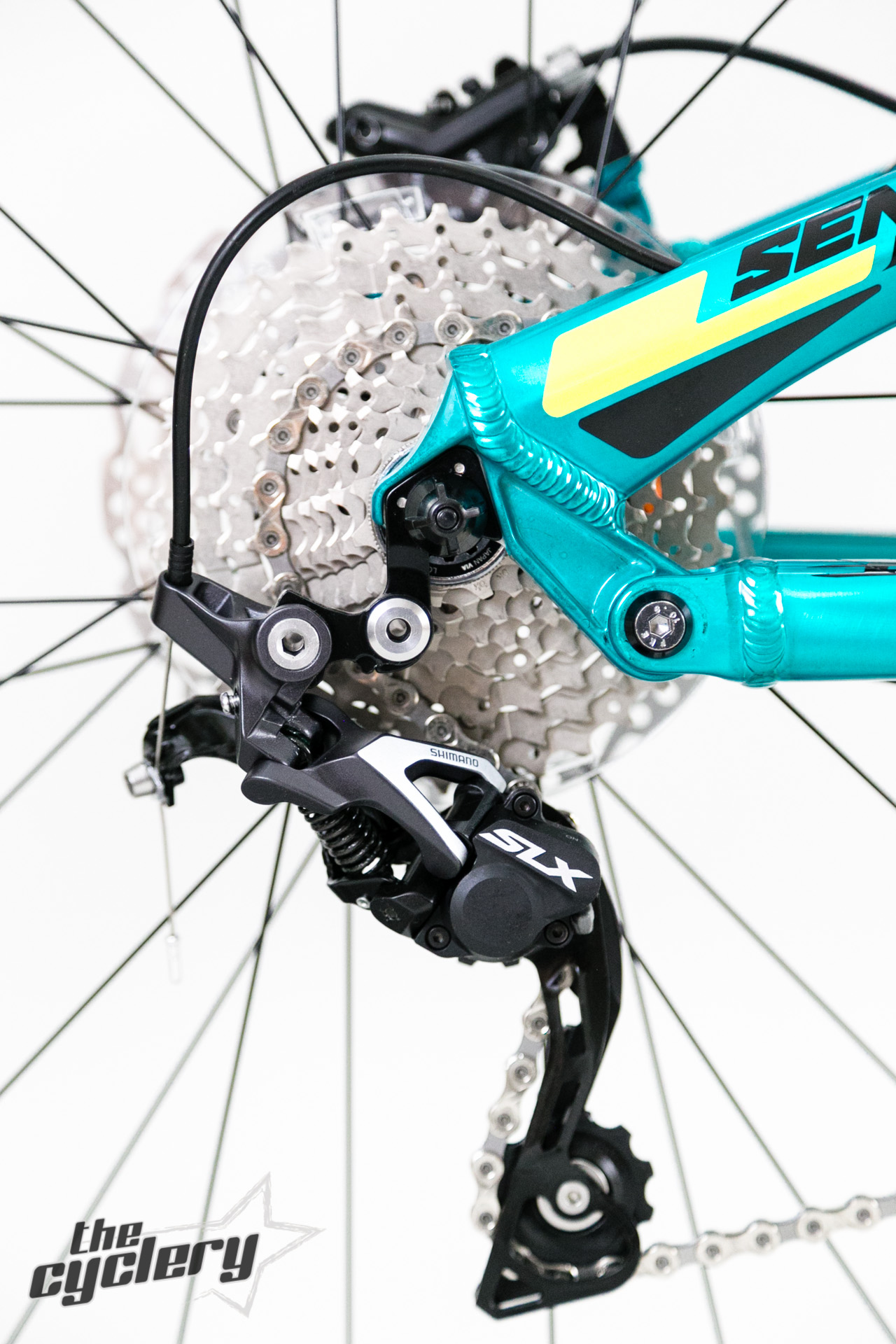

Rear derailleur: | Shimano SLX Shadow+ (RD-M675-GS), GS cage |
Front derailleur: | Shimano Deore (FD-M617-D) |

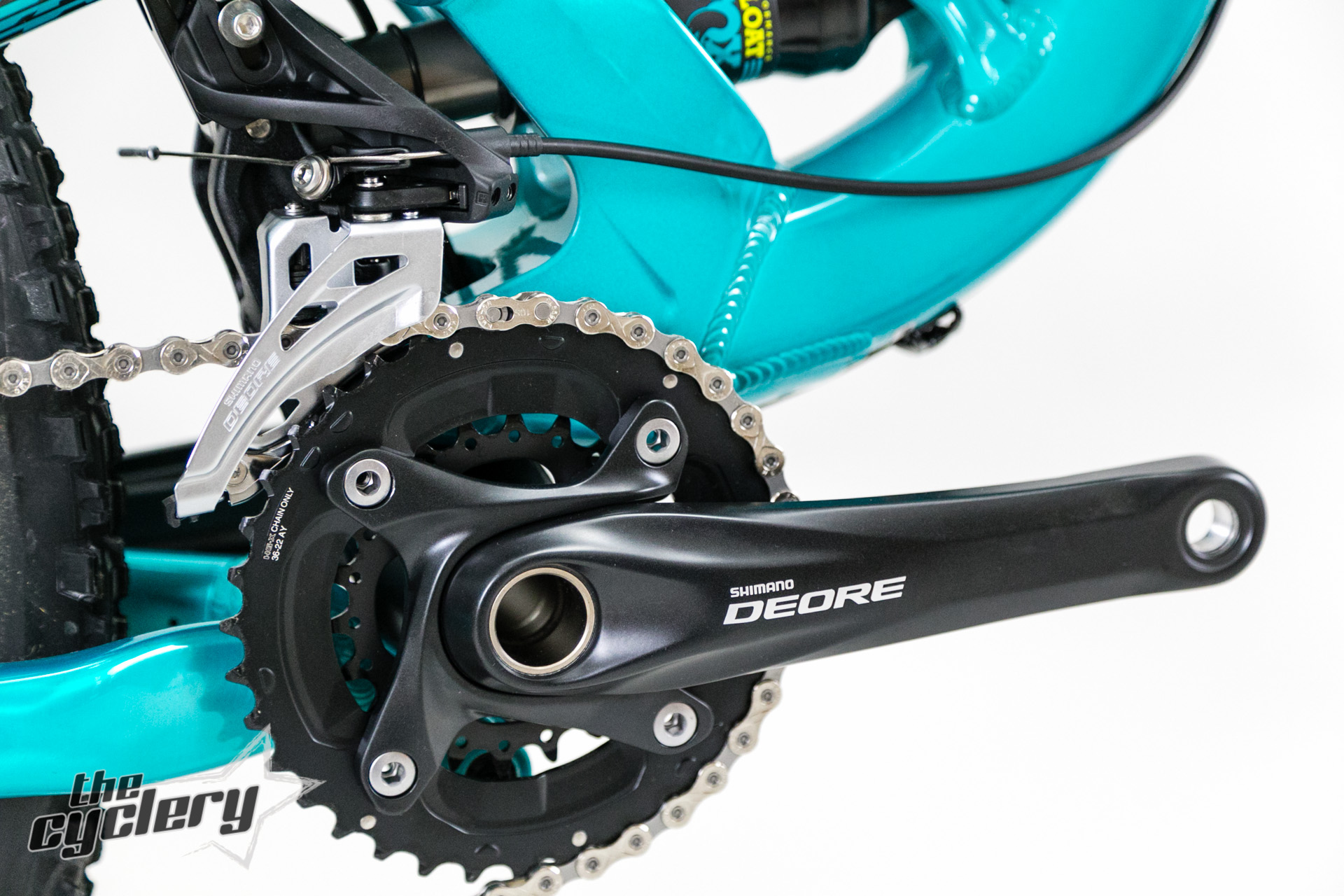

Crankset: | Shimano FC-M617, 36/22 teeth chain rings |
Bottom bracket: | Shimano |
Pedals: | - |
Chain: | KMC X10 |
Rear cogs: | Shimano CS-HG50-10), 10-speed, 11-36 teeth |

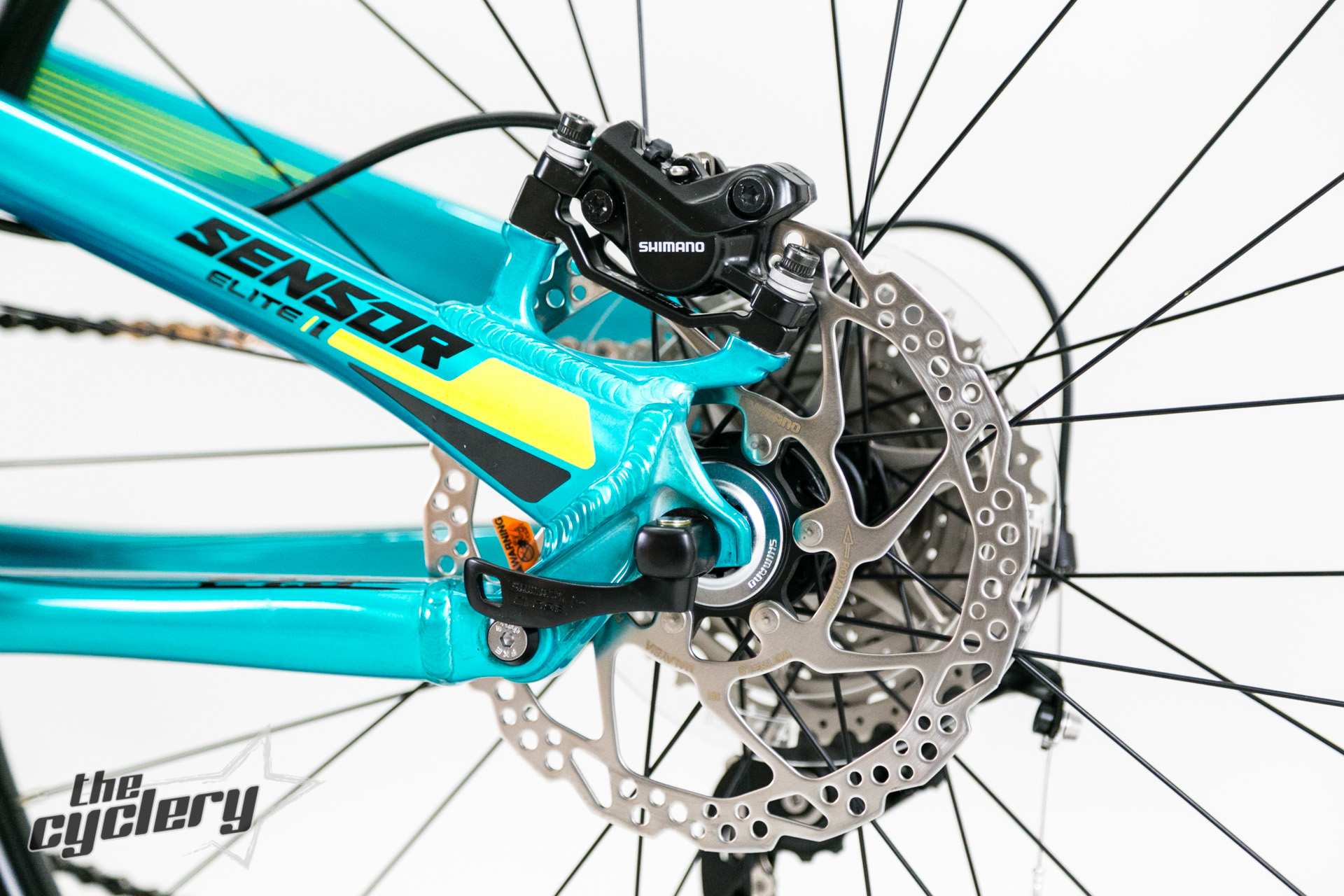

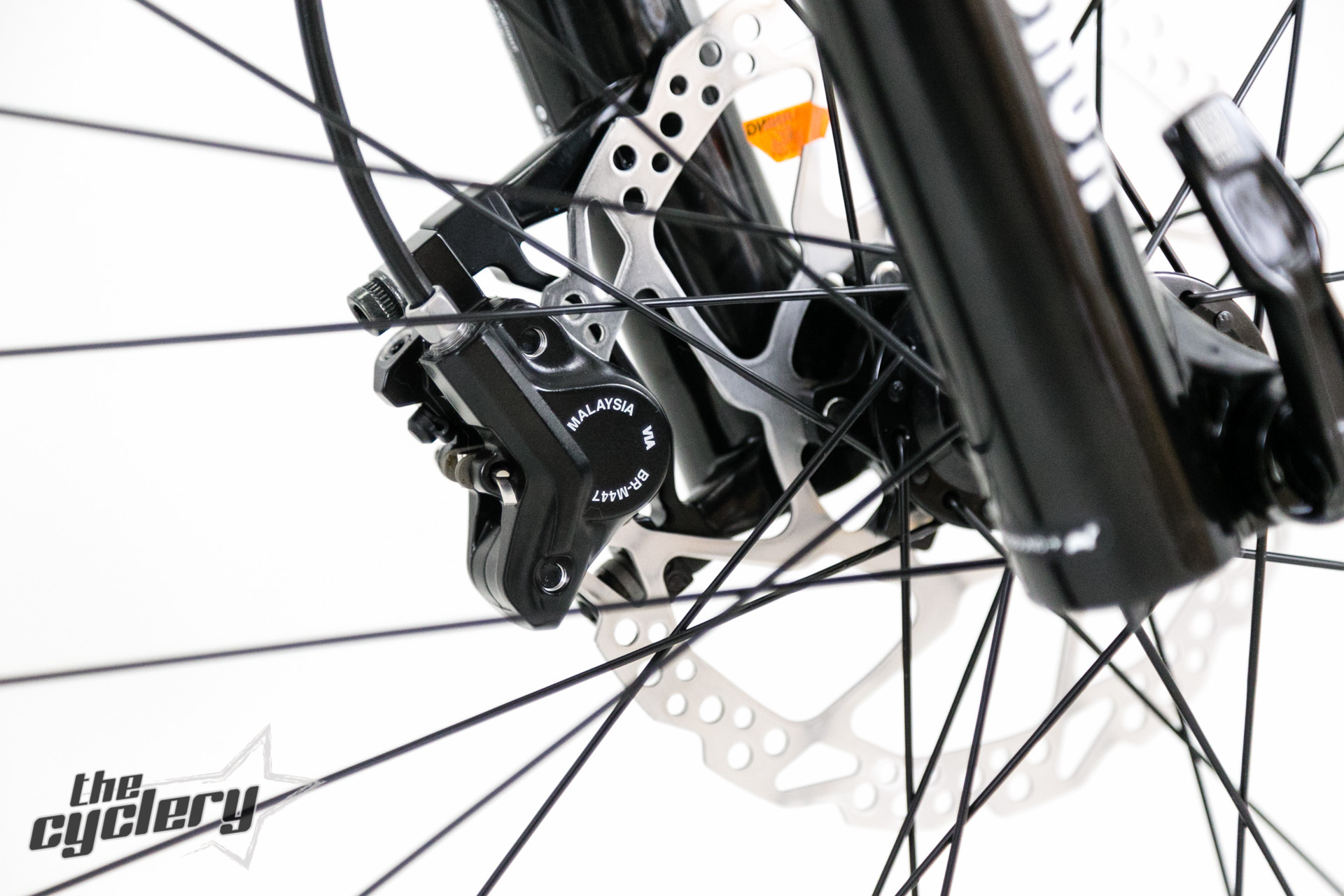

Brakes: | Shimano BR-M447, hydraulic disc brakes, 180mm Centerlock discs (f/r) |
Brake levers: | Shimano BR-M445 |
| |
Wheels | |
Front hub: | All Terra (GT), sealed bearings, 15 x 100mm thru axle, Centerlock mount |
Rear hub: | All Terra (GT), sealed bearings, 12 x 142mm thru axle, Centerlock mount |
Rims: | WTB ST i23 TCS, 32 hole, tubeless ready |
Tires: | Maxxis Ardent, folding, 27,5 x 2,4"/2,25" (f/r) |
| |
Components | |
Stem: | Kore XCD1, 60mm length, 6° rise, 31,8mm clamp |
Handlebar: | Kore XCD1, 6061er aluminum (double butted), 13mm rise, 760mm width, 31,8mm clamp |
Headset: | FSA Orbit C-40-ACB |
Saddle: | WTB Silverado Sport |
Seatpost: | All Terra (GT), 34,9 x 400mm |
Other: | - |
