Chassis | |

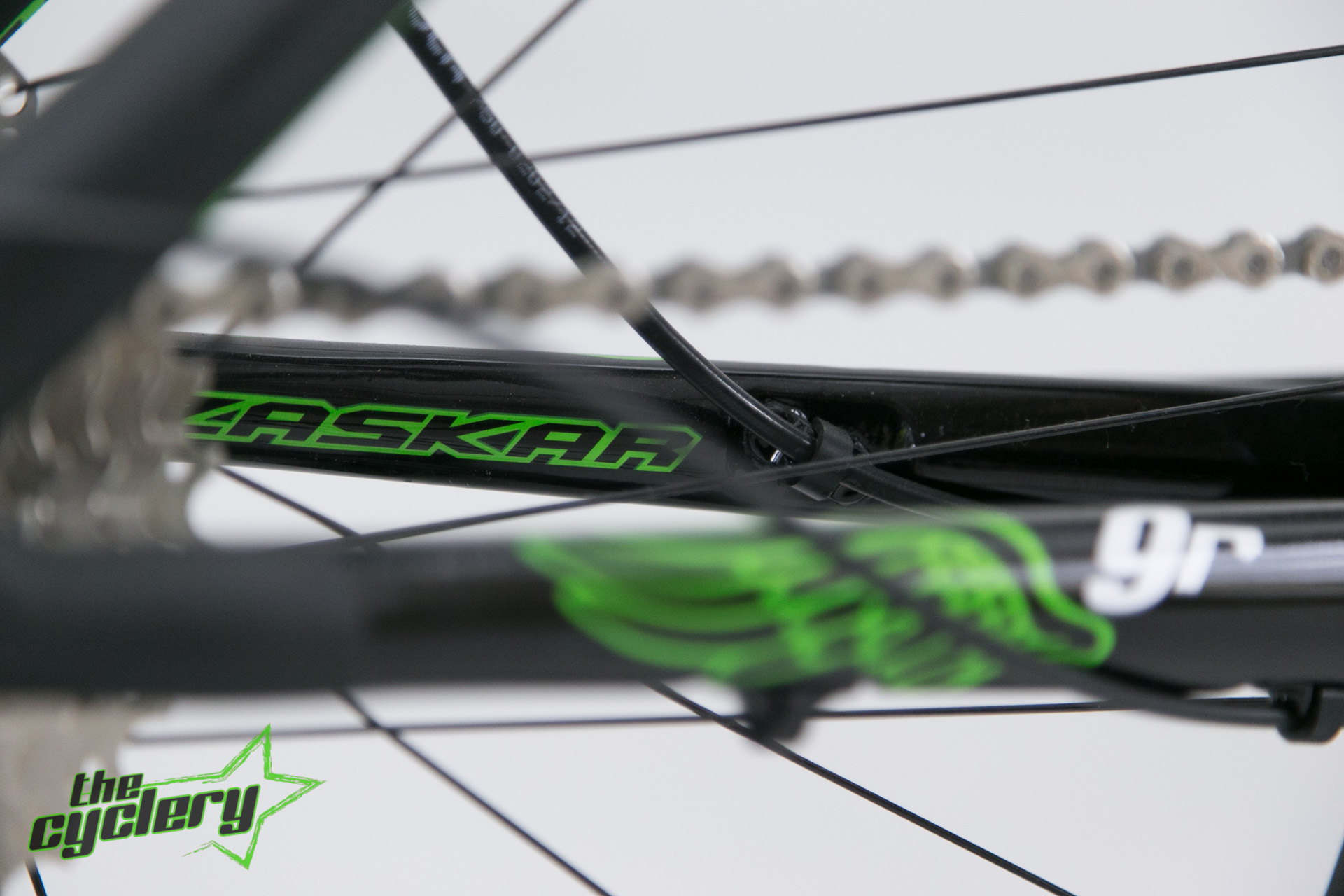

Frame: | Cross Country with FOC-technology (Force Optimized Construction) and Triple Triangle design, Ultra Speed Blend carbon, BB30 press fit Innenlager, Tapered Steuerrohr |

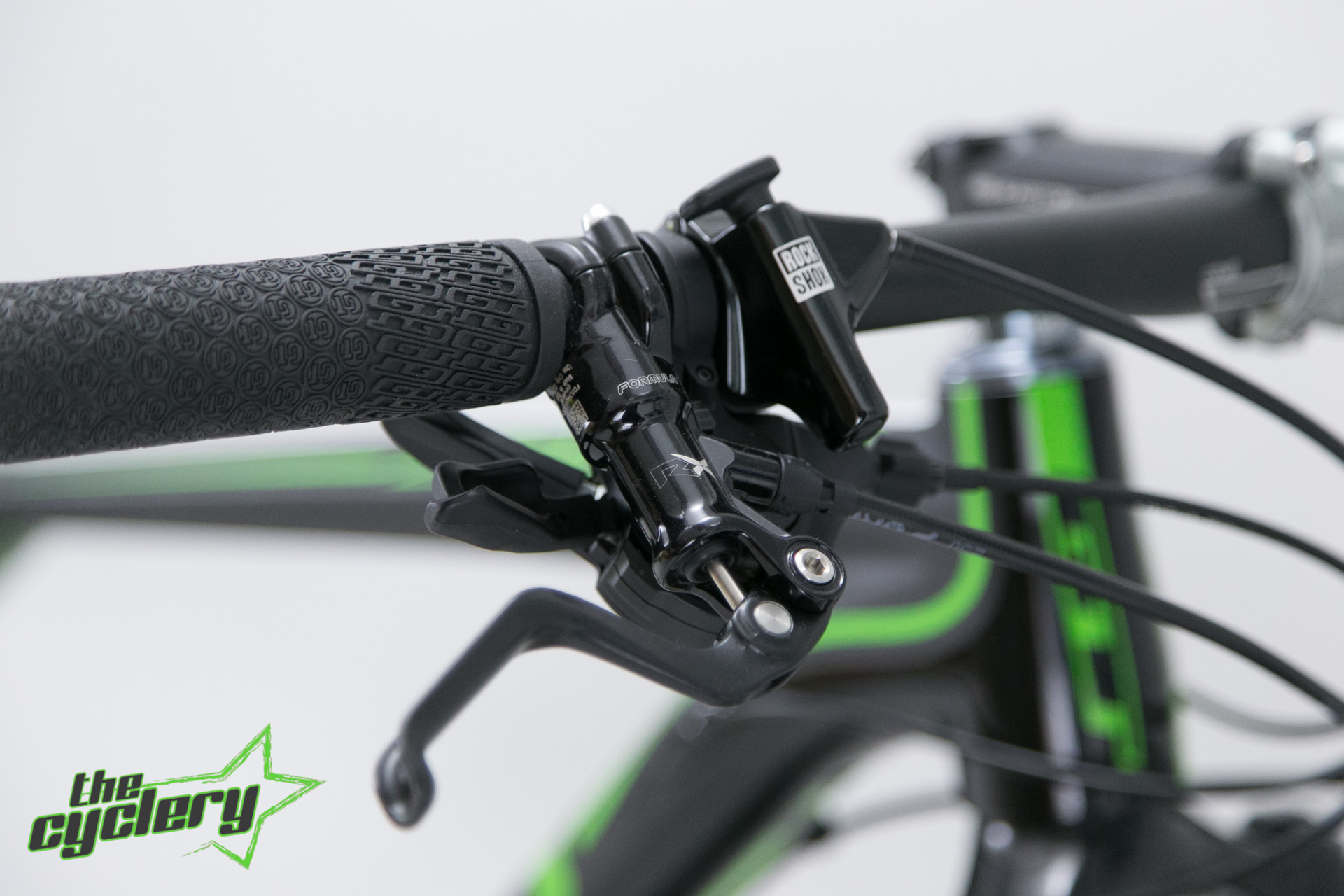

Fork: | Rock Shox Recon Gold RL, Solo Air spring system (adjustable), 100mm travel, 15 x 100mm thru axle, adjustable rebound and PushLoc remote lock-out |
Shock: | - |
| |
Drivetrain/Brakes | |
Shifters: | Shimano SLX (SL-M670), 2 x 10-speed |

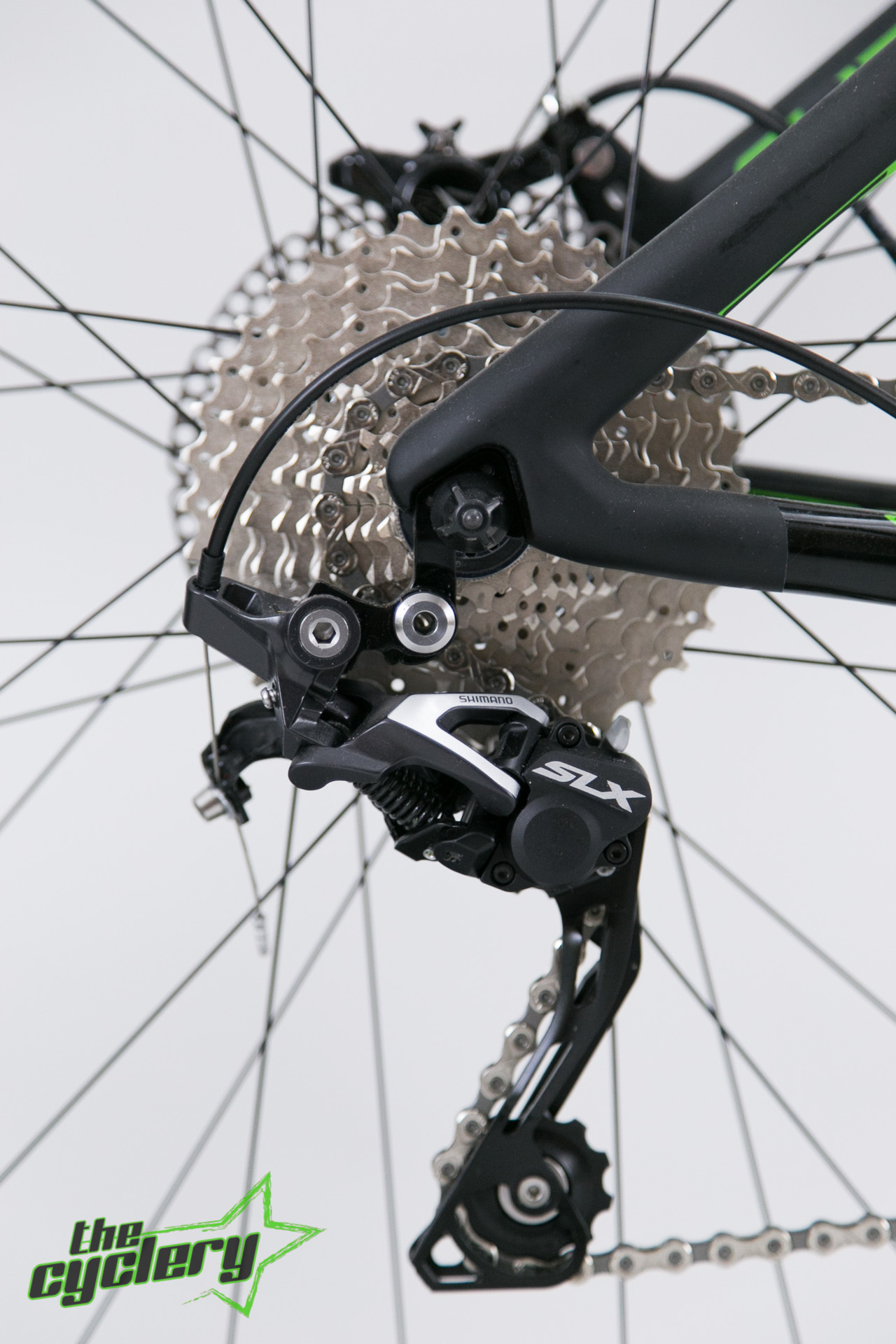

Rear derailleur: | Shimano SLX Shadow+ (RD-M675-GS) |
Front derailleur: | Shimano Deore (FD-M616B) |
Crankset: | Shimano Deore (FC-M615), 38/24 teeth chain rings |
Bottom bracket: | Shimano Deore |
Pedals: | - |
Chain: | KMC X10 |
Rear cogs: | Shimano CS-HG62-10, 10-speed, 11-36 teeth |
Brakes: | Formula RX, hydraulic disc brakes, 180/160mm discs (f/r) |
Brake levers: | Formula RX |
| |
Wheels | |
Front hub: | All Terra, sealed bearings, 15 x 100mm thru axle |
Rear hub: | All Terra, 4 sealed bearings, quick release |

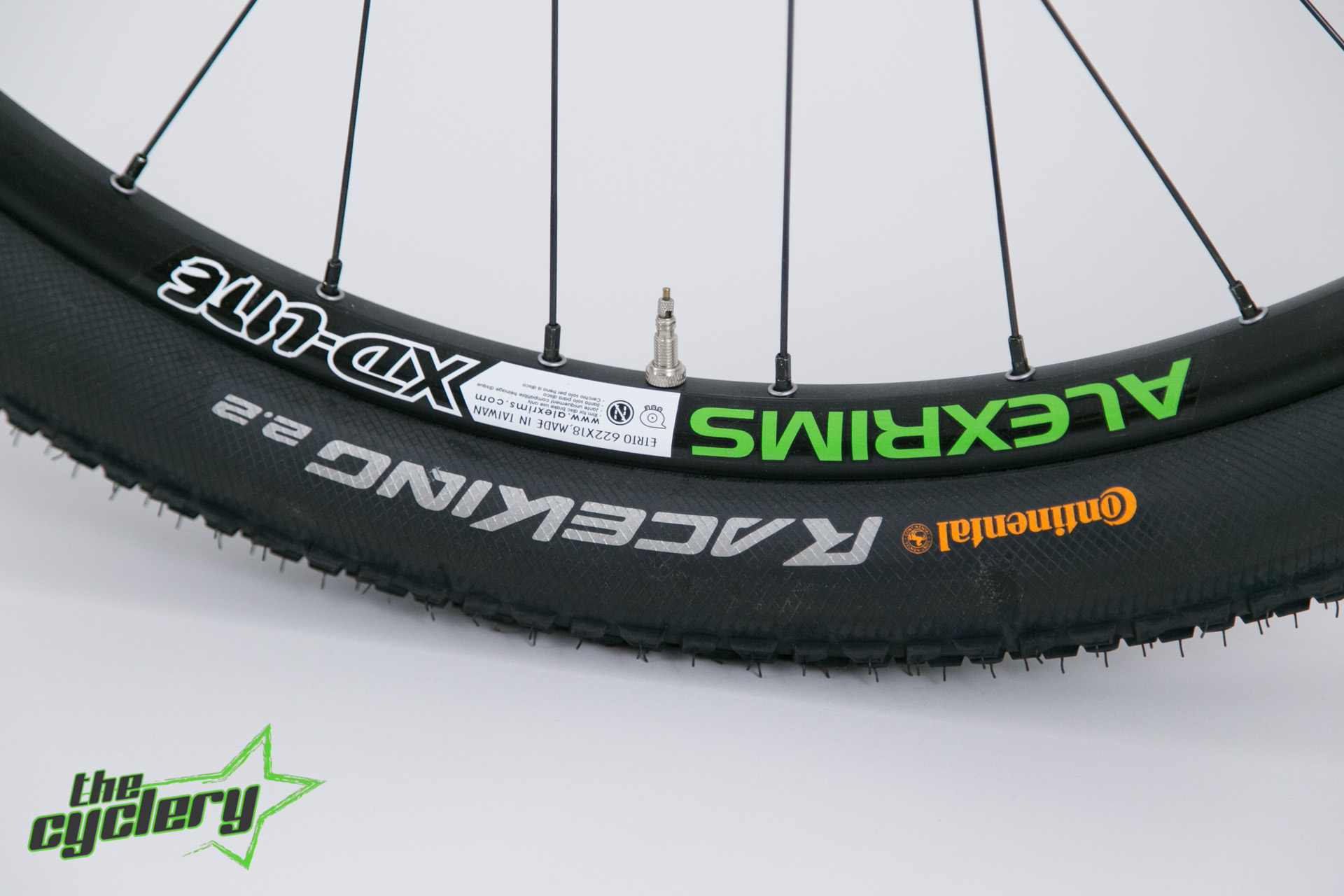

Rims: | Alex XD-Lite 29" |
Tires: | Continental Race King, ProTection, folding, 29 x 2,2" (f/r) |
| |
Components | |
Stem: | Easton EA50, 8° rise, 31,8mm clamp |
Handelbar: | Crankbrothers Cobalt 1 flat bar, 700mm width, 31,8mm clamp |
Headset: | FSA No.42 ACB |

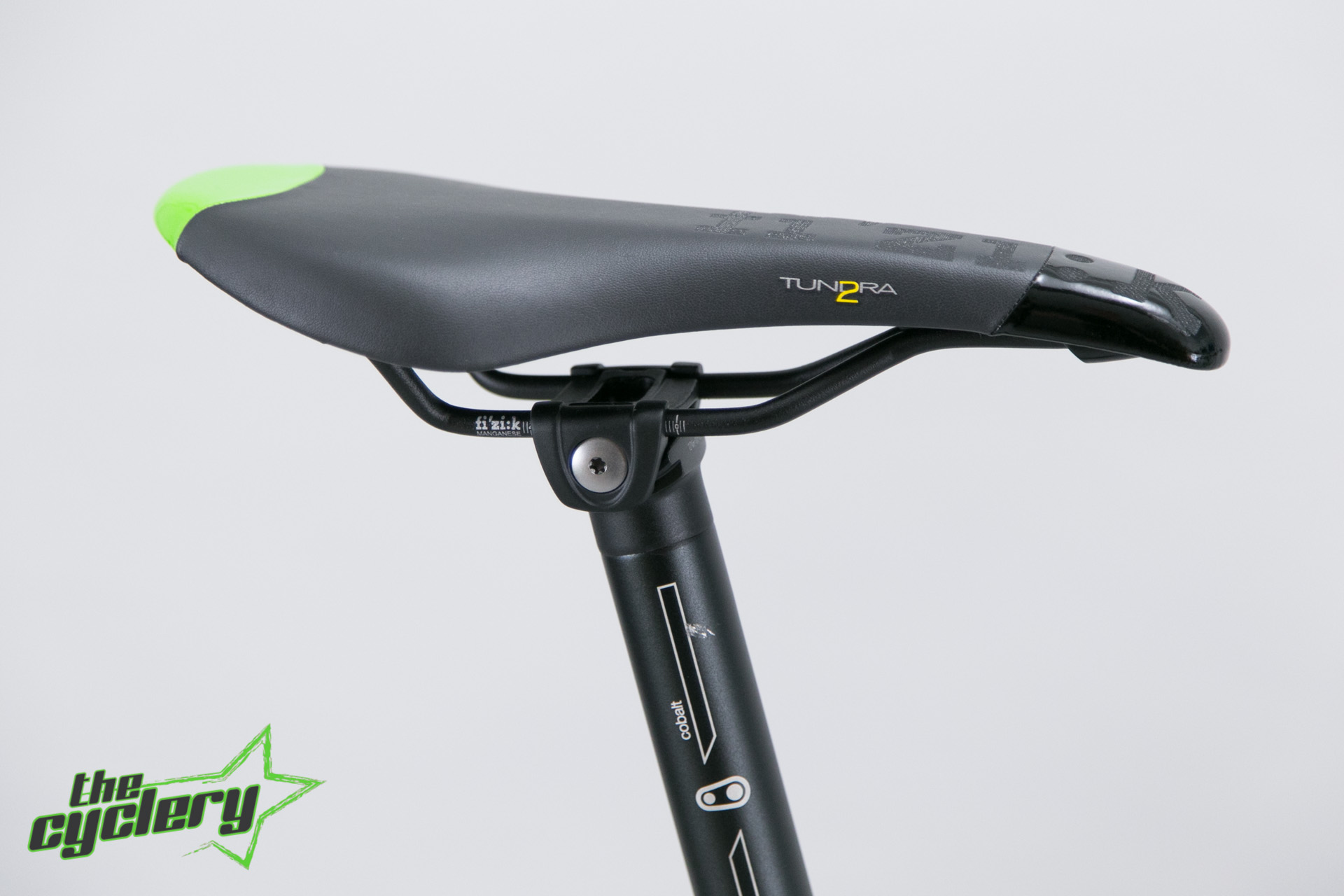

Saddle: | Fizik Tundra 2 Magnesium |
Seat post: | Crankbrothers Cobalt 1 |
Other: | - |
