Chassis | |

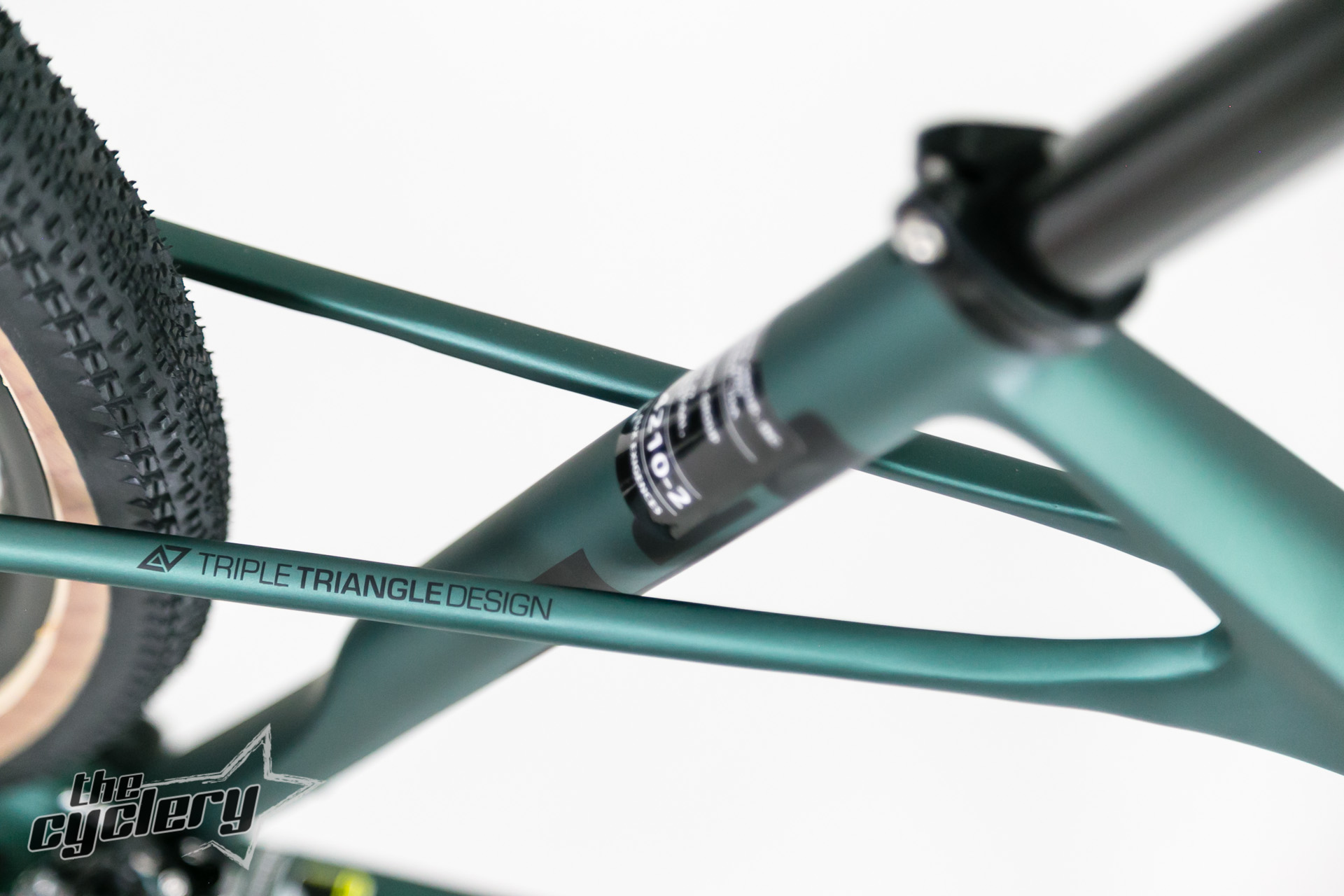

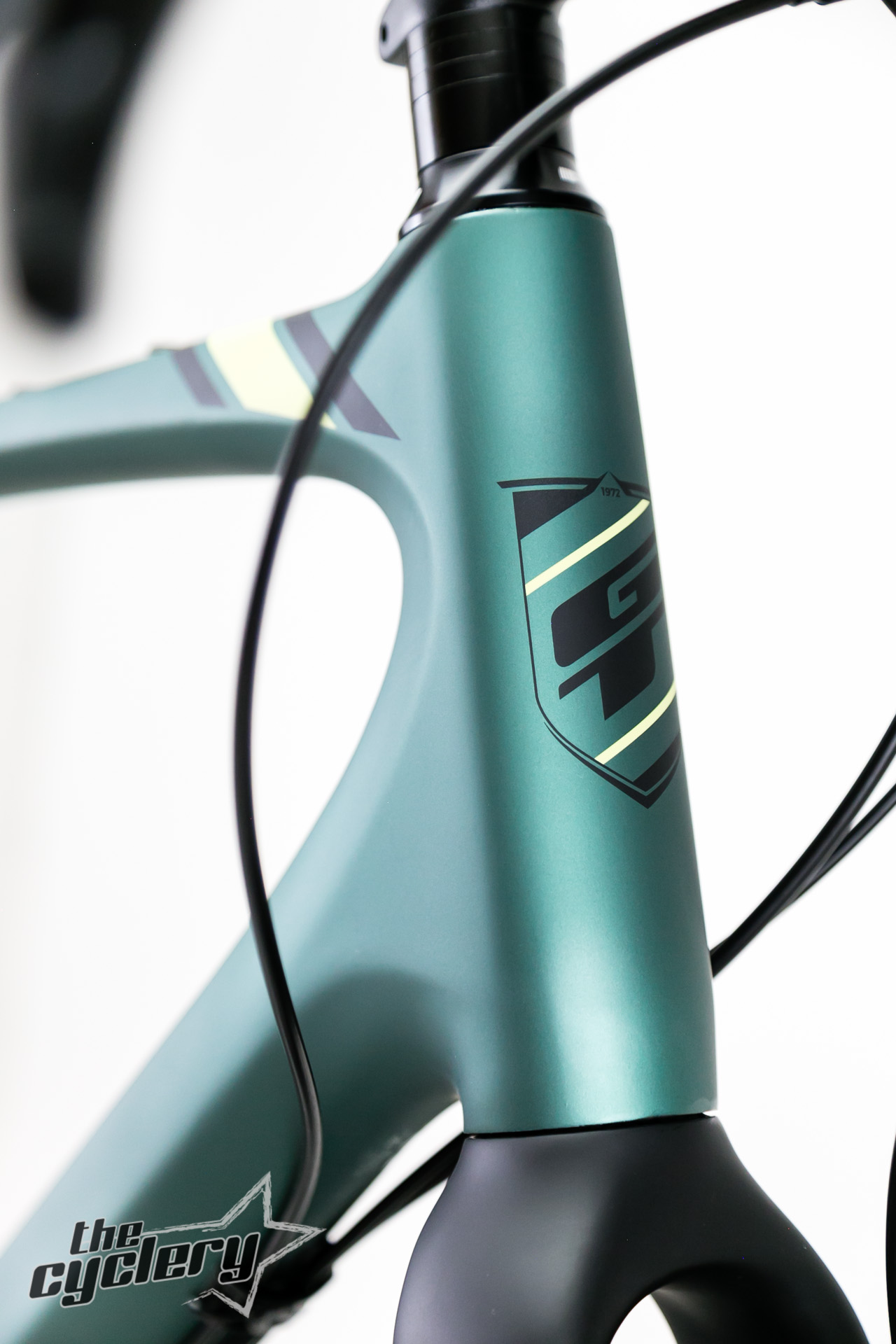

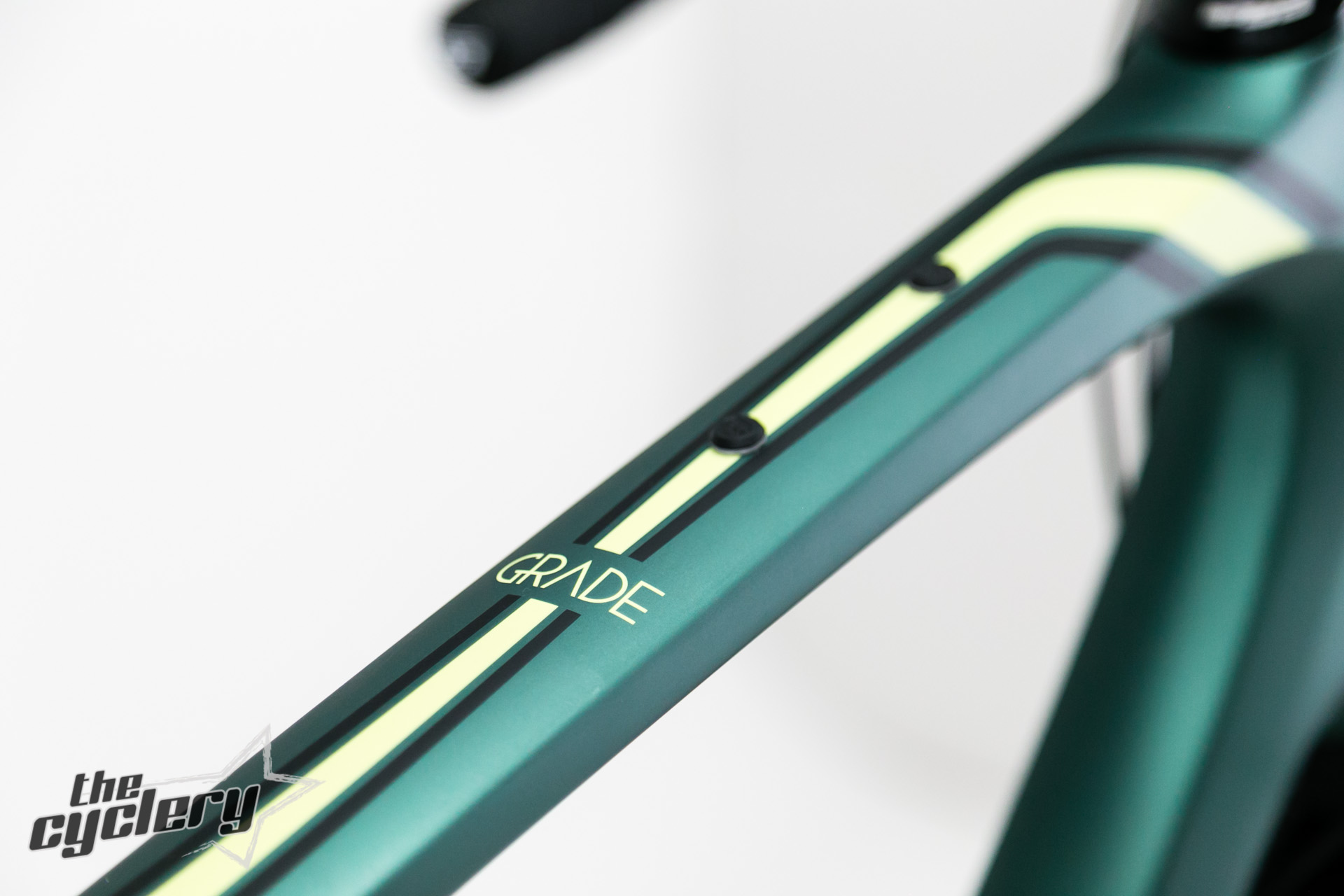

Frame: | New Grade carbon frame with Triple Triangle design, EnduRoad geometry, Floating seat stays, huge tire clearance (up to 42mm), PF30 pressfit housing, tapered head tube, detachable fender mounts, compatible with height adjustable seat posts and Shimano Di2, 12 x 142mm thru axle |
Fork: | New Grade full carbon with tapered steerer, 12 x 100mm thru axle, bottle cage/fender/rack mounts |
Shock: | - |
Drivetrain/Brakes | |

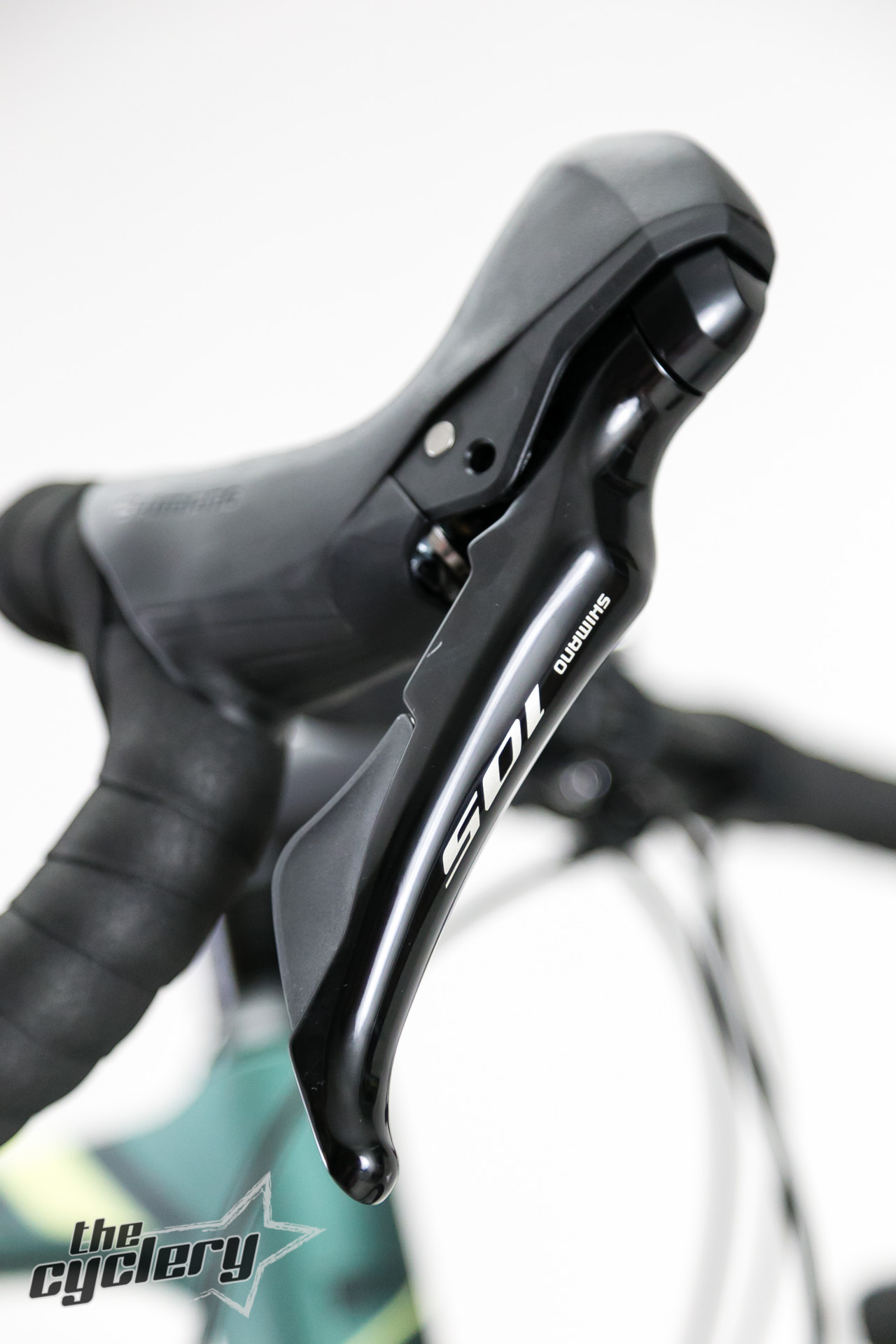

Shifter: | Shimano 105, 2 x 11-speed |

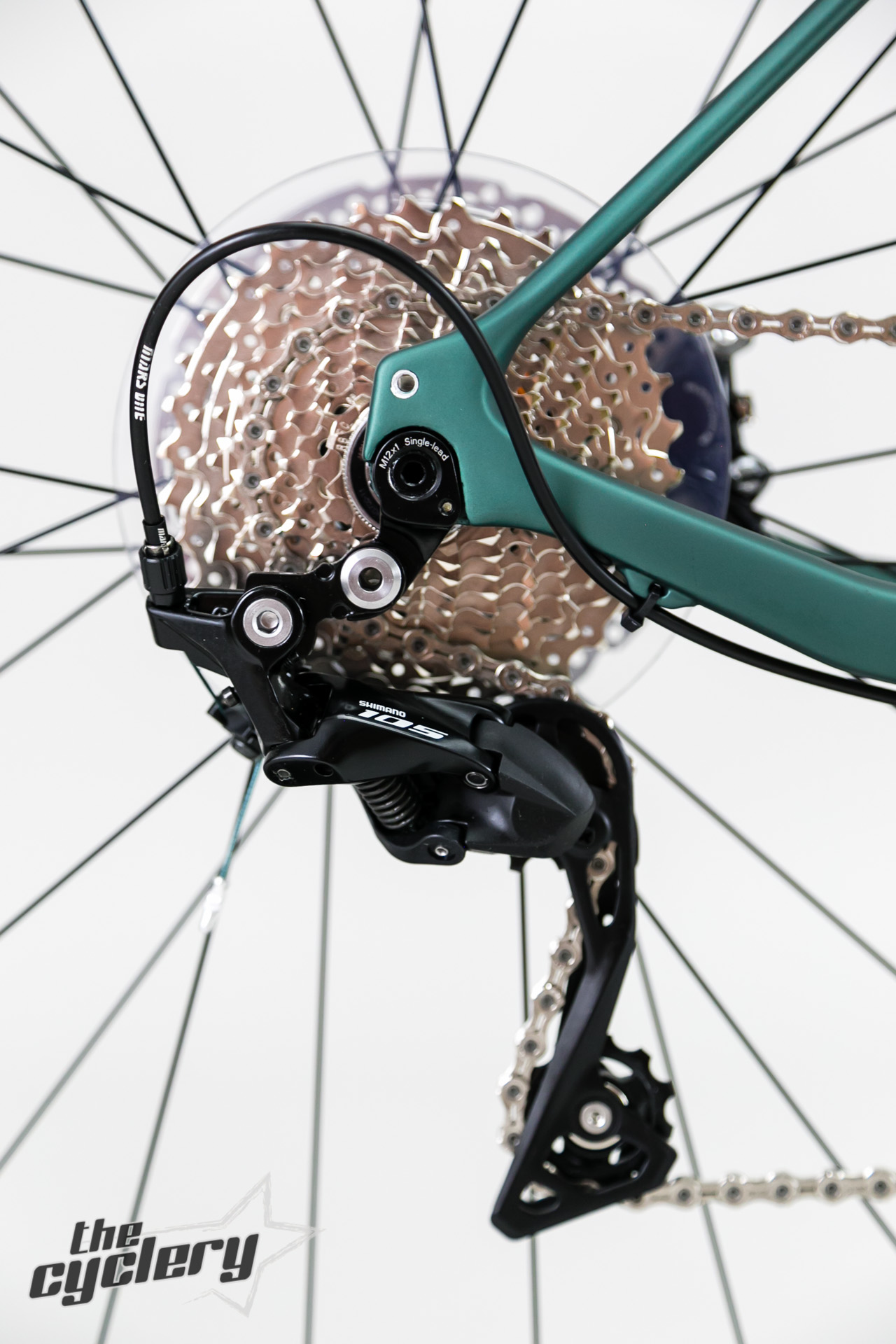

Rear derailleur: | Shimano 105, GS cage |
Front derailleur: | Shimano 105, Braze-on mount |
Crankset: | FSA Omega, 46/30 teeth chain rings |
Bottom bracket: | FSA PressFit 30 |
Pedals: | Not included (order here separately) |
Chain: | KMC X11, 11-speed |
Cogs: | Shimano 105, 11-speed, 11-34 teeth |

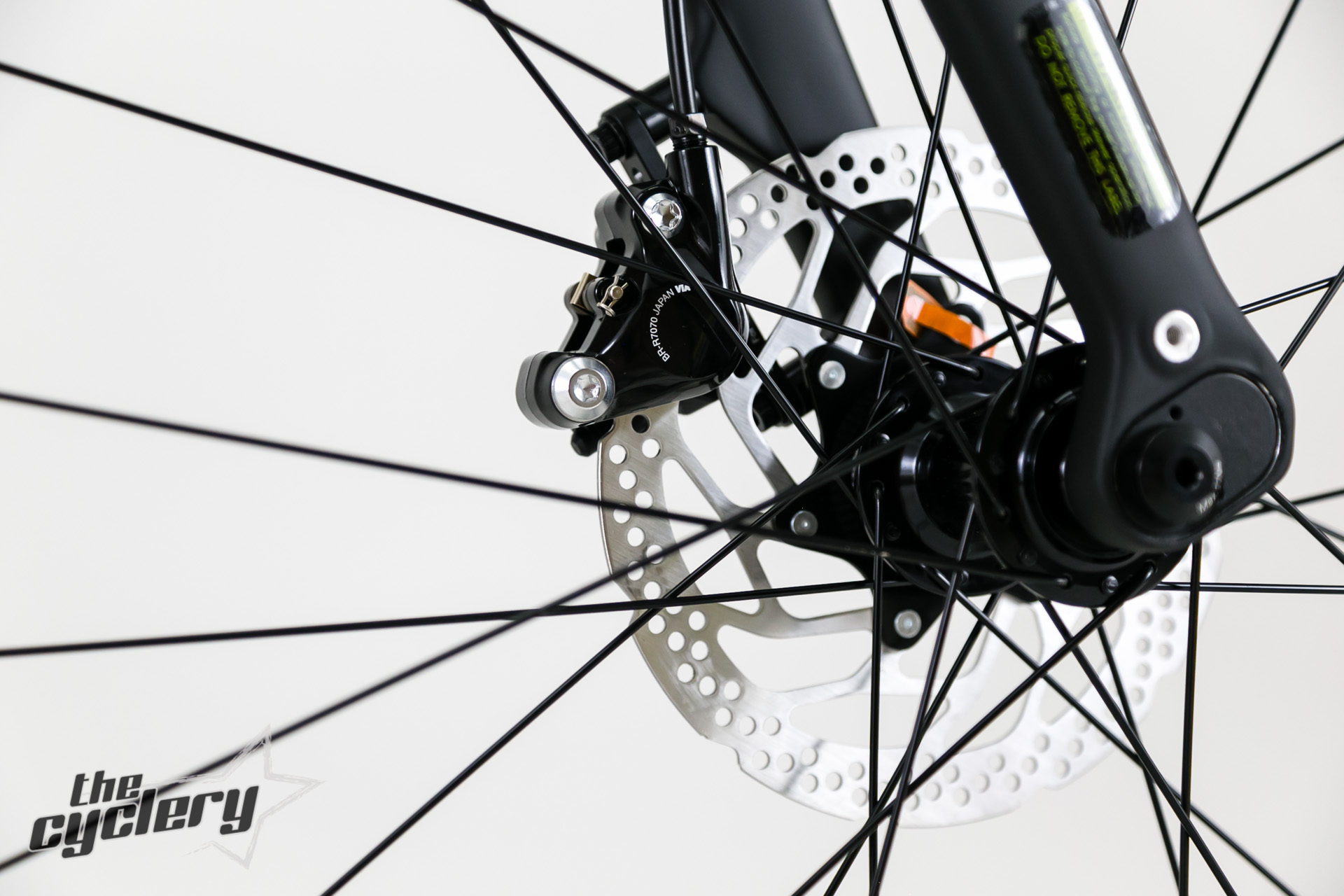

Brakes: | Shimano 105, hydraulic disc brakes, 160mm discs (f/r) |
Brake levers: | Shimano 105 |
Wheels | |
Front hub: | Formula CL-712, 28 hole, 12 x 100mm thru axle |
Rear hub: | Formula RXC-400, 28 hole, 12 x 142mm thru axle |
Rims: | WTB ST i23 TCS, 28 hole, tubeless ready |

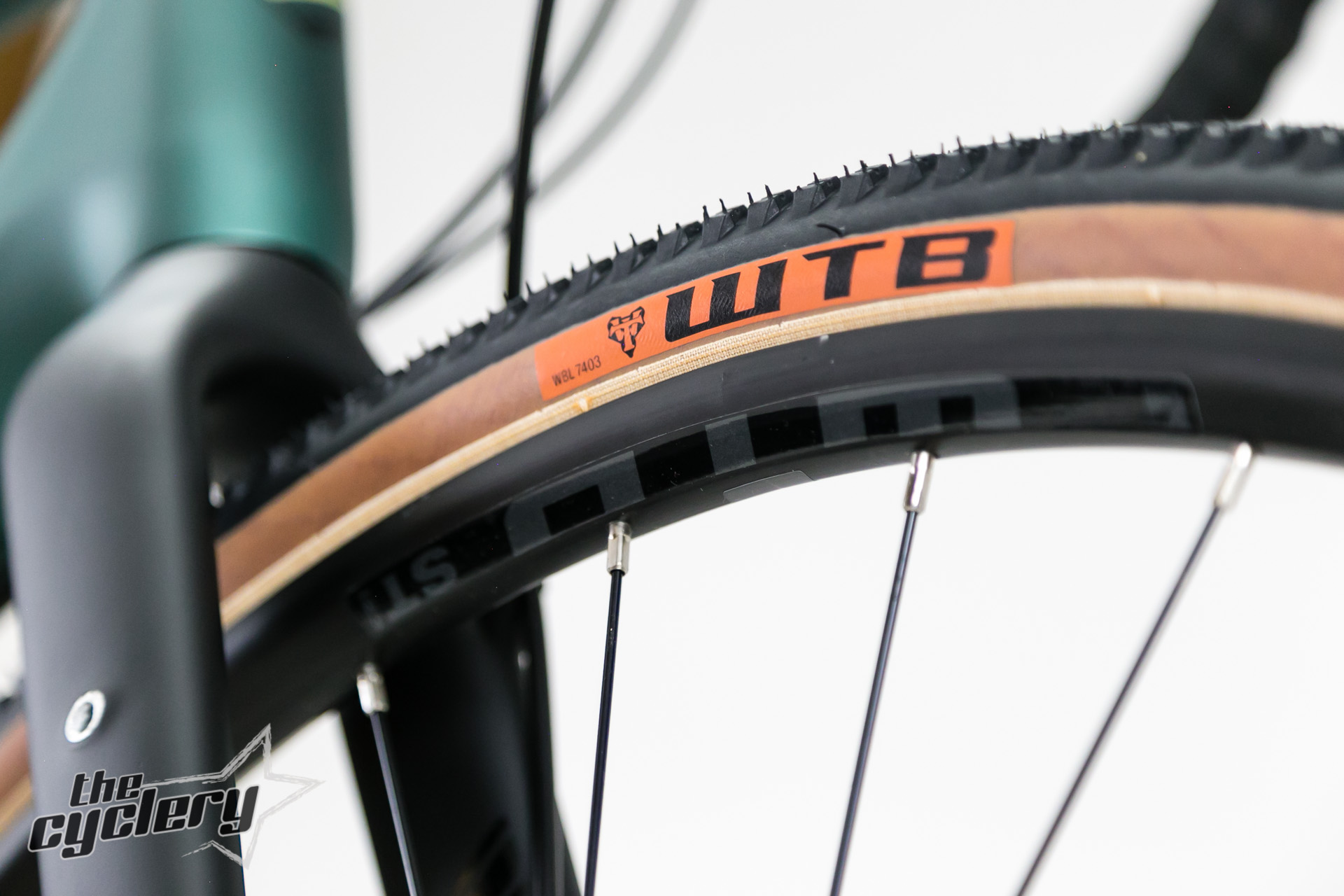

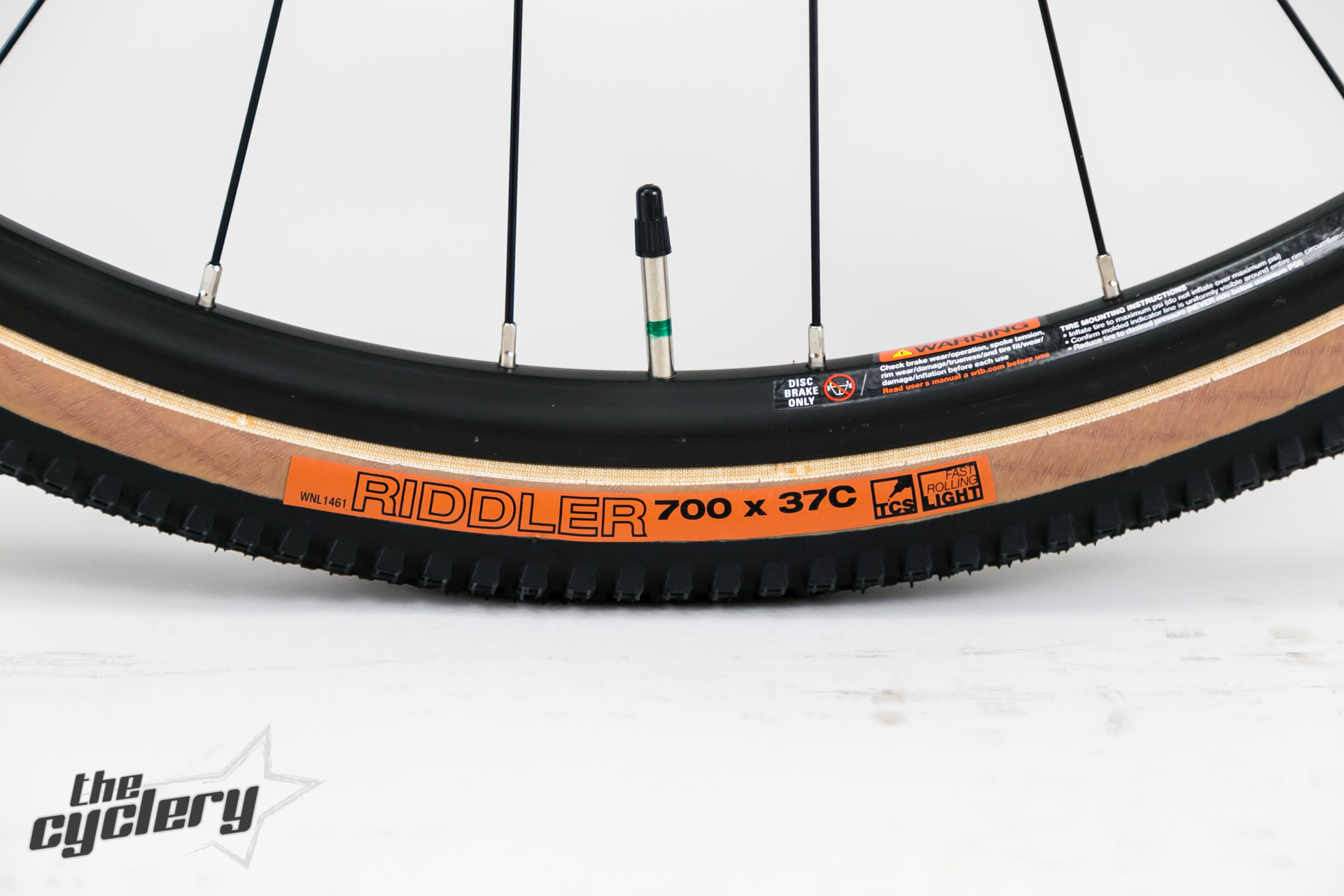

Tires: | WTB Riddler TCS Light, 700 x 37c, tubeless ready |
Components | |

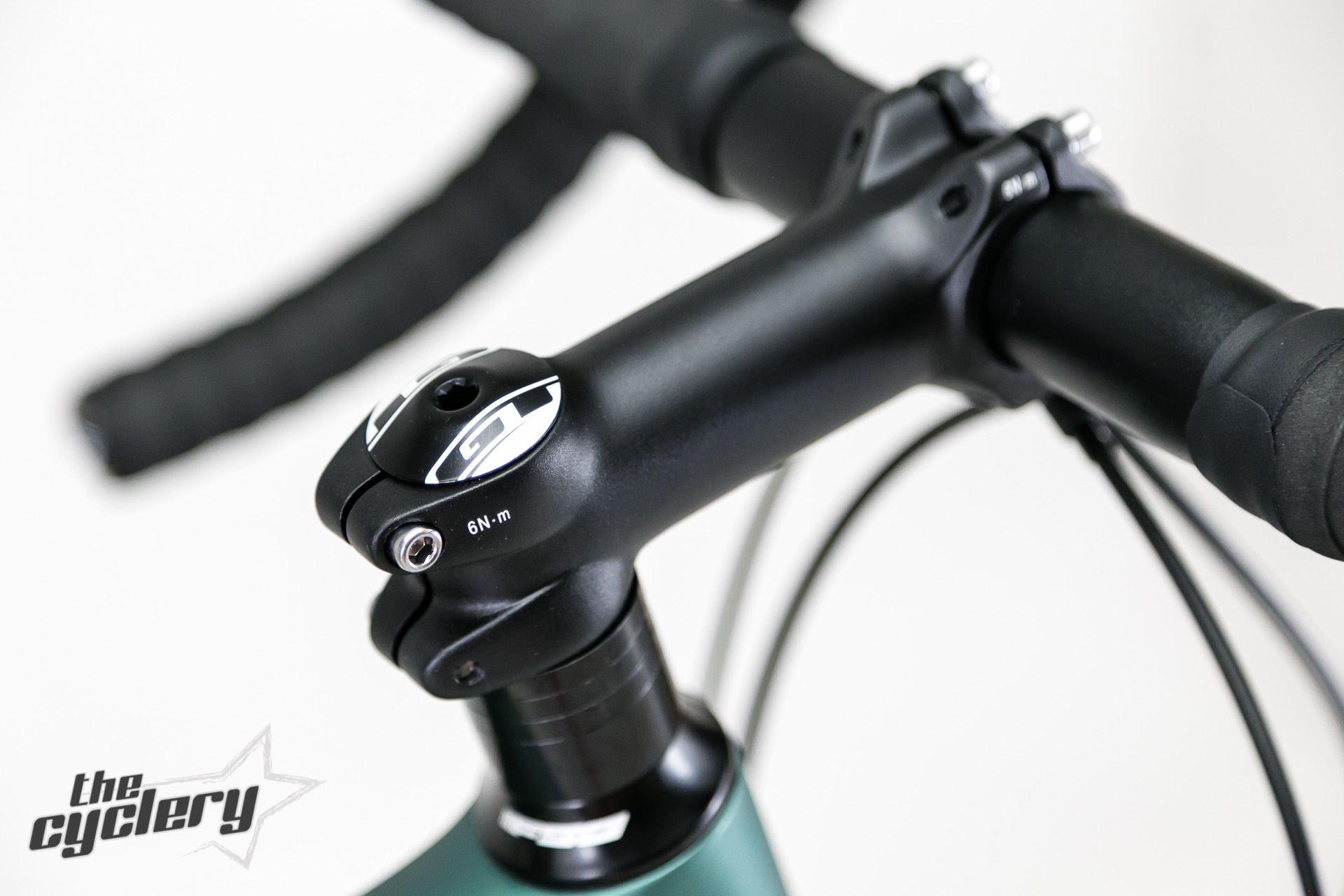

Stem: | GT Road Design, 3D-forged 6061 aluminum, 6° rise, 4-bolt clamp |

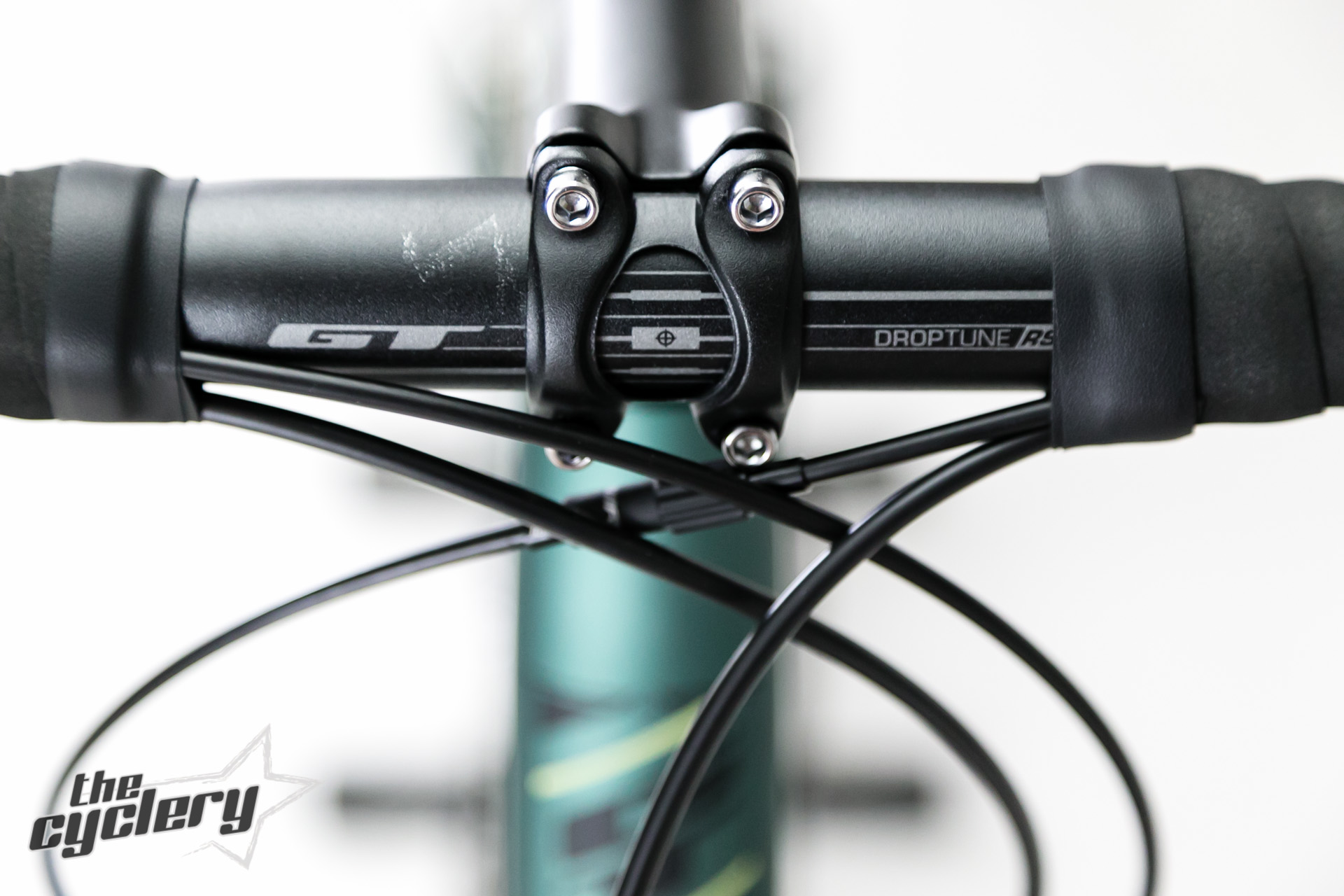

Handlebar: | New GT DropTune Super Light, double butted 6061 aluminum |
Headset: | FSA No. 44, sealed bearings |

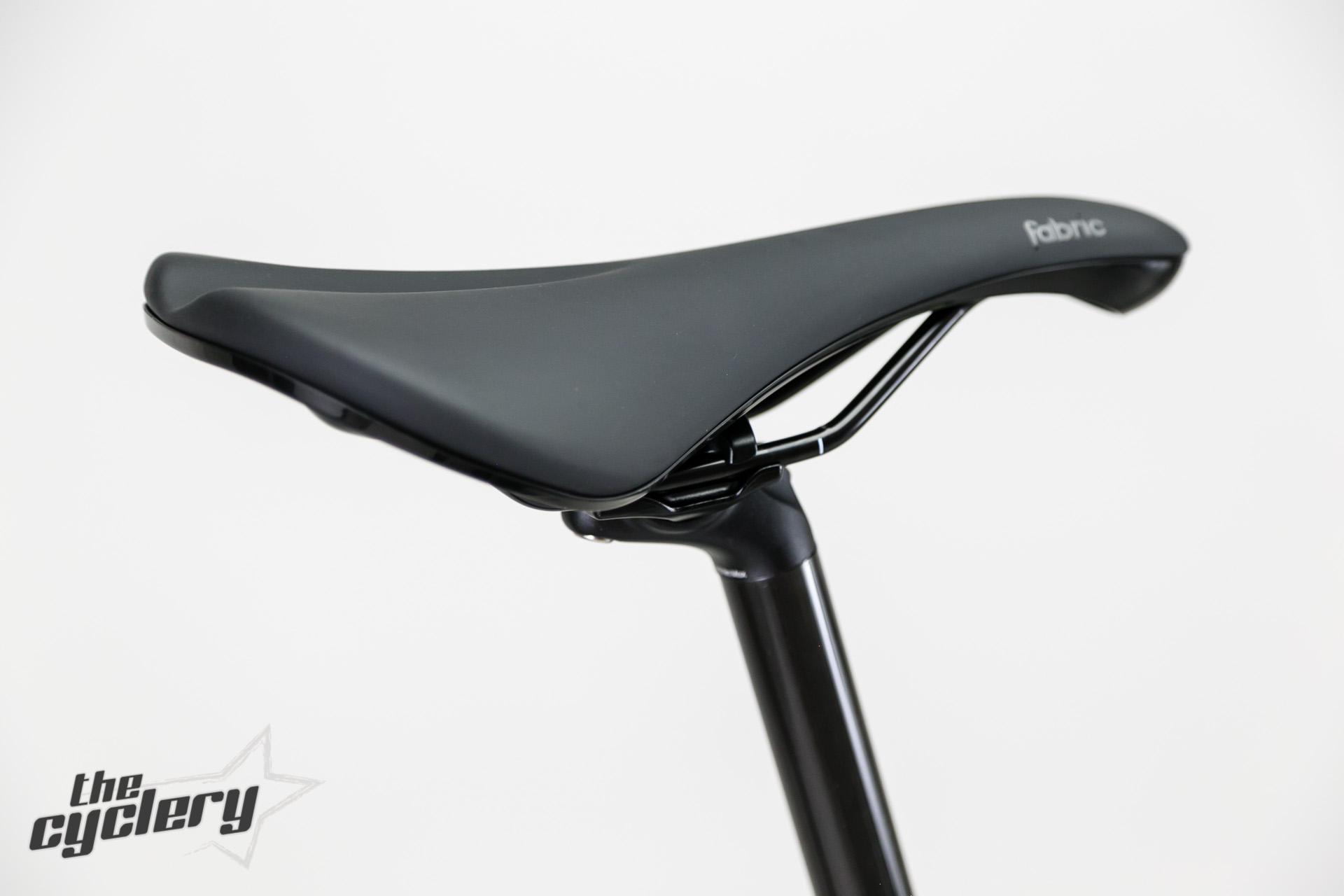

Saddle: | Fabric Scoop Radius Sport |
Seatpost: | GT Carbon, 27,2 x 350mm (48-58cm frame sizes)/27,2 x 400mm (61cm frame size) |
Other: | - |
Key facts | Click here |
Product video:
Model year | 2020 |
Intended use | Road |
Wheel size | 28" |
Frame material | Carbon |
Shifting type | Derailleur |
Gears | 22 |
