Chassis | |

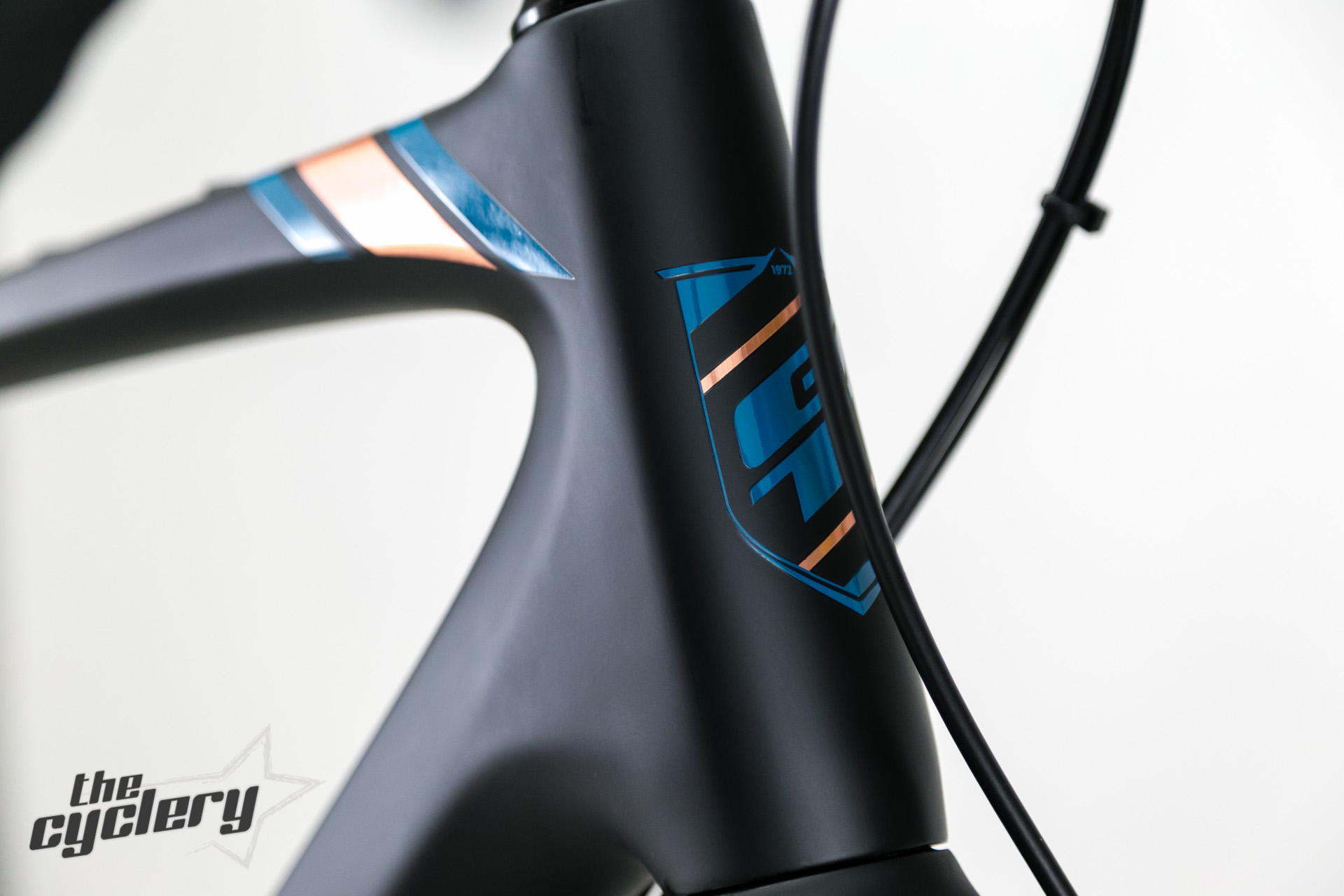

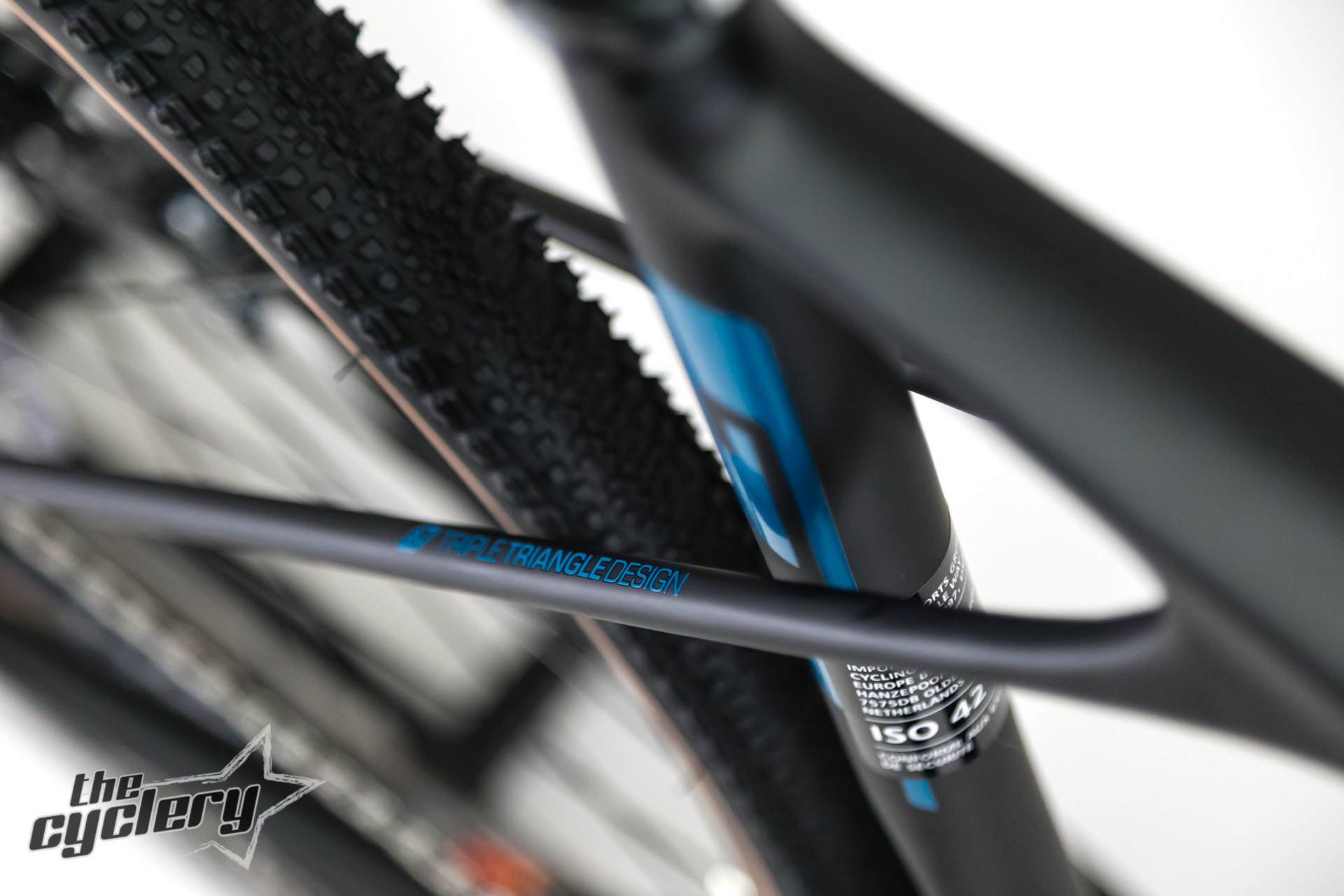

Frame: | New Grade carbon frame with Triple Triangle design, EnduRoad geometry, Floating seat stays, huge tire clearance (up to 42mm), PF30 pressfit housing, tapered head tube, detachable fender mounts, compatible with height adjustable seat posts and Shimano Di2, 12 x 142mm thru axle |
Fork: | New Grade full carbon with tapered steerer, 12 x 100mm thru axle, bottle cage/fender/rack mounts |
Shock: | - |
| |
Drivetrain/Brakes | |
Shifter: | Shimano Ultegra Di2, 2 x 11-speed |

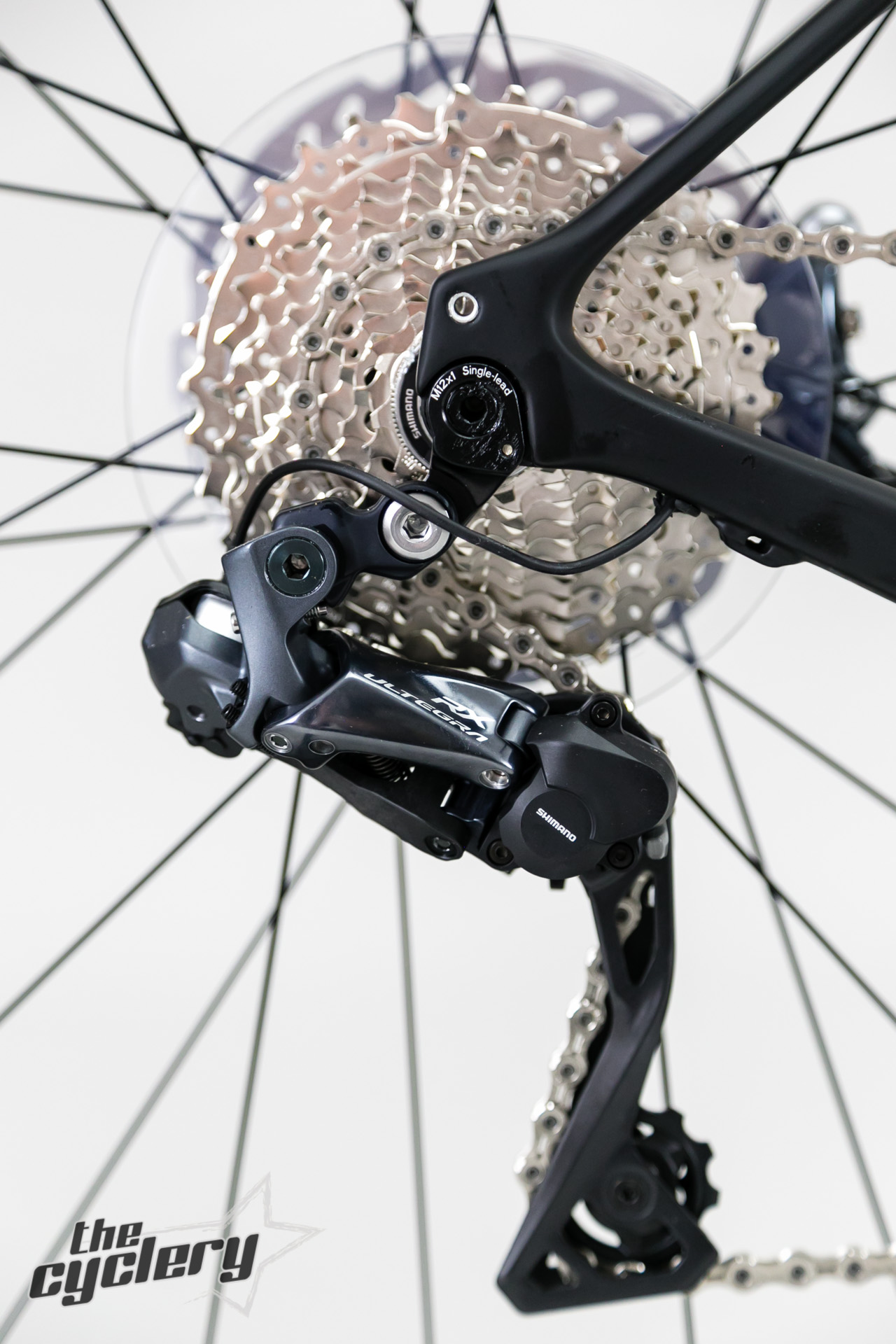

Rear derailleur: | Shimano Ultegra Di2 RD-RX805-GS |
Front derailleur: | Shimano Ultegra Di2, Braze-on mount |

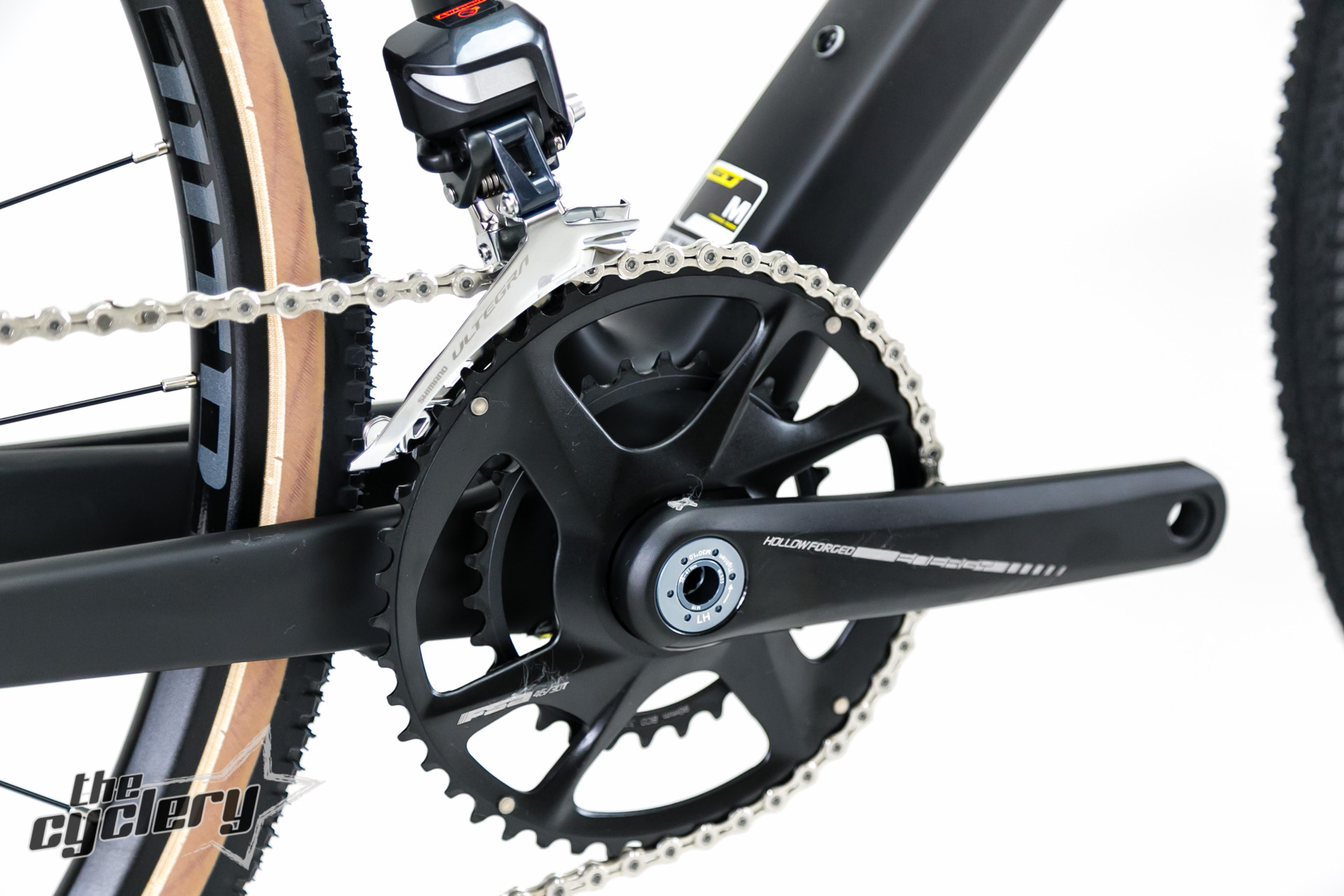

Crankset: | FSA Energy Modular, 46/30 teeth chain rings |
Bottom bracket: | FSA PressFit 30 |
Pedals: | Not included (order here separately) |
Chain: | KMC X11, 11-speed |
Cogs: | Shimano 105, 11-speed, 11-34 teeth |

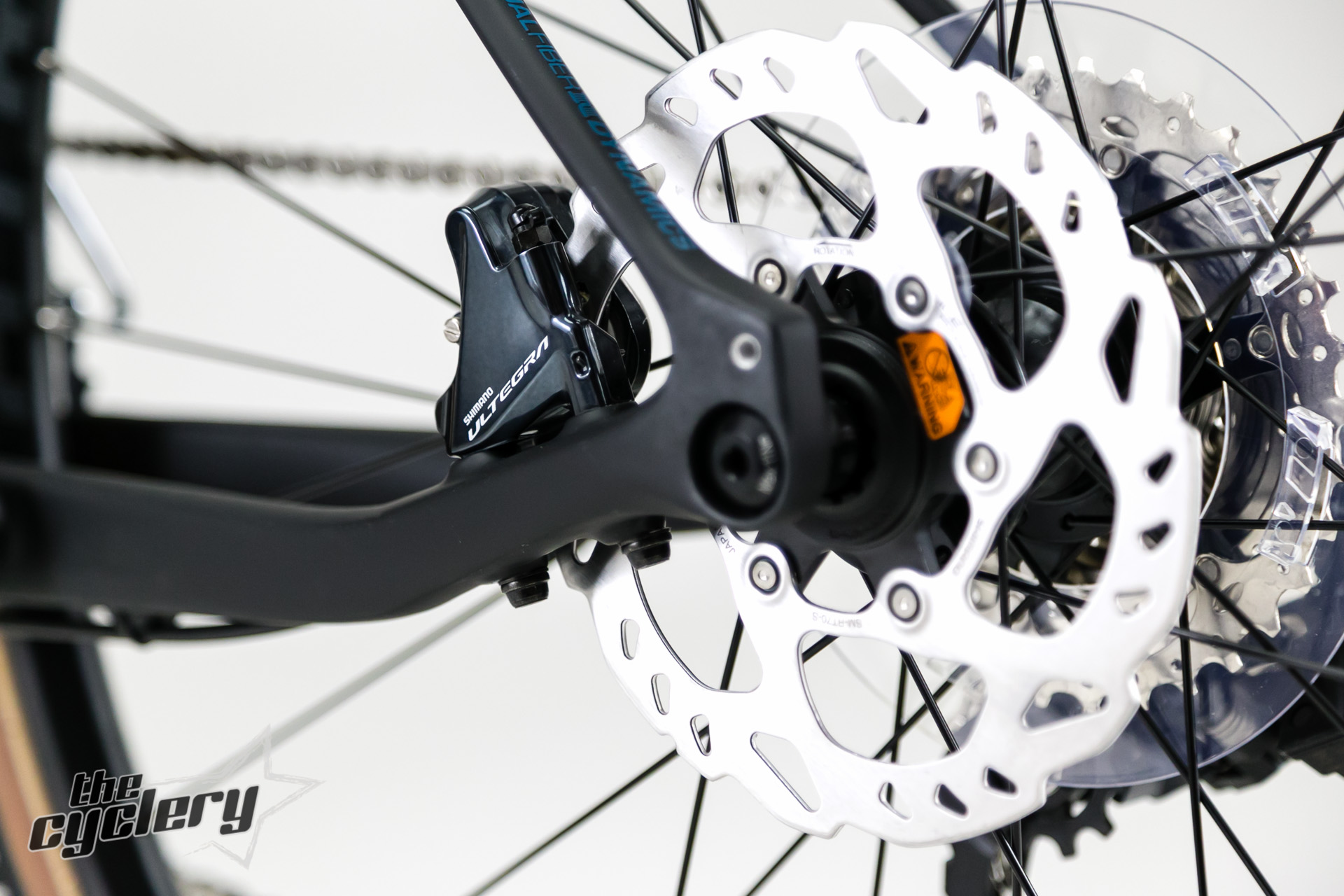

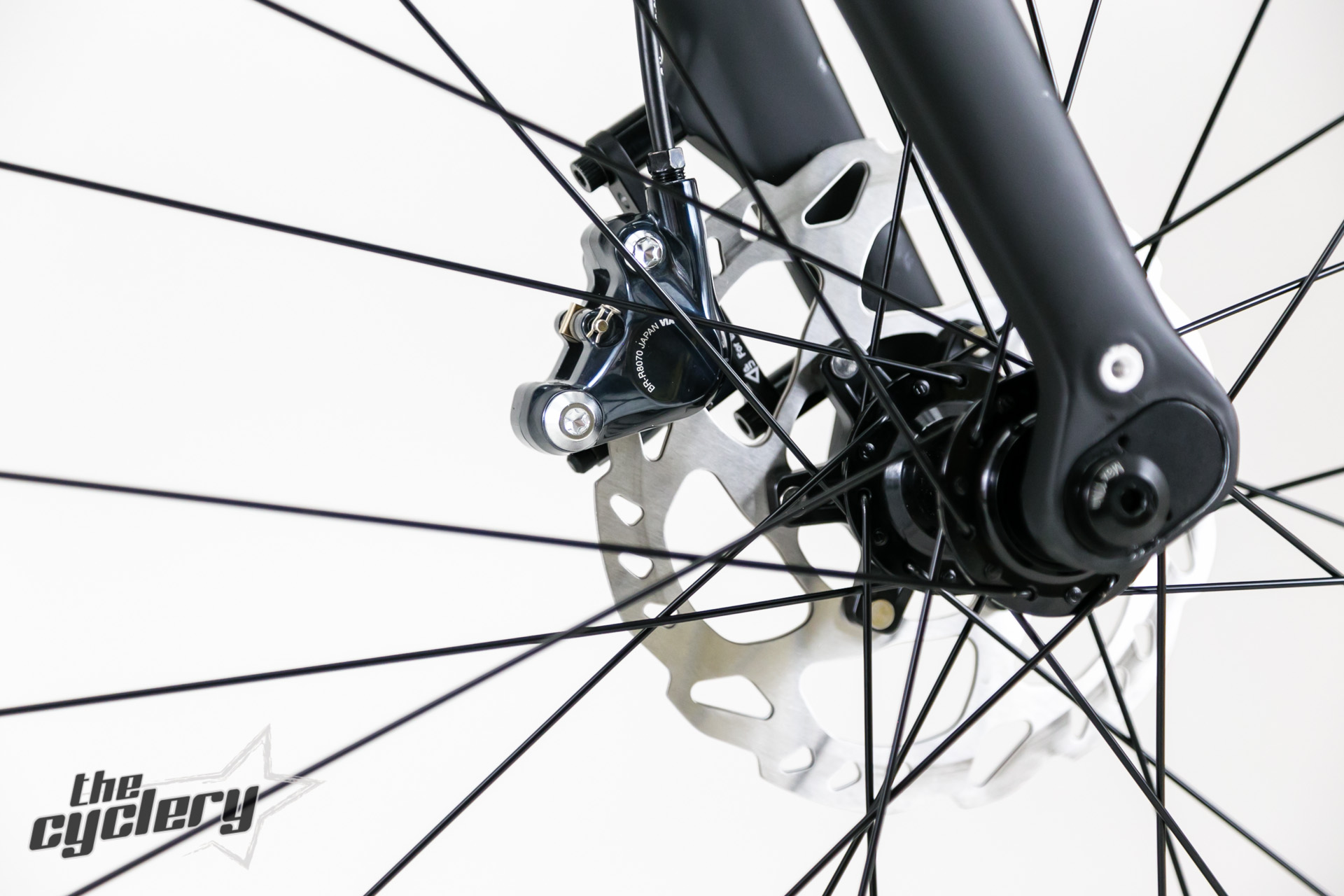

Brakes: | Shimano Ultegra, hydraulic disc brakes, 160mm discs (f/r) |

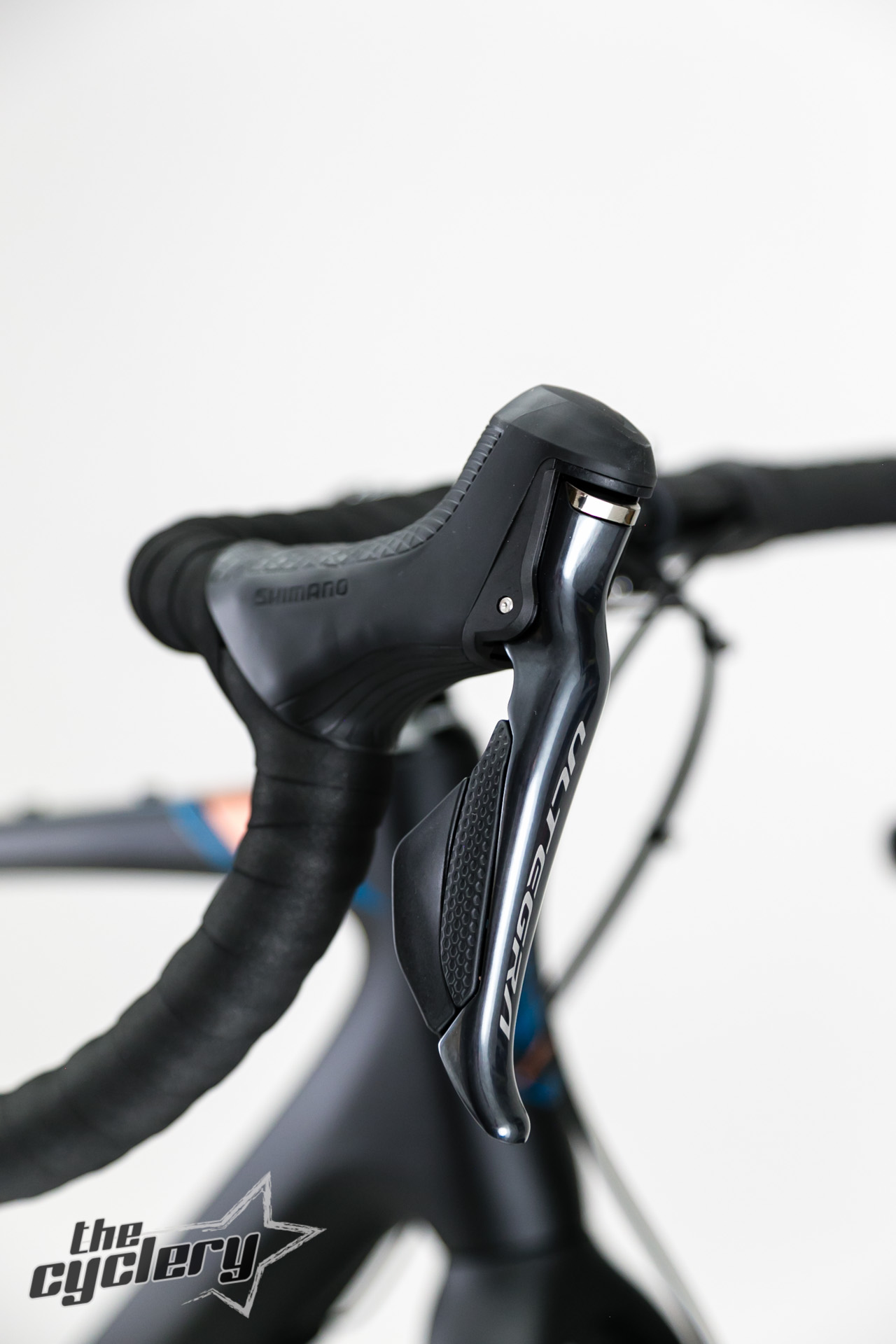

Brake levers: | Shimano Ultegra Di2 |
| |
Wheels | |
Front hub: | Formula Ultra Lightweight, 28 hole, 12 x 100mm thru axle |
Rear hub: | Formula Ultra Lightweight, 28 hole, 12 x 142mm thru axle |

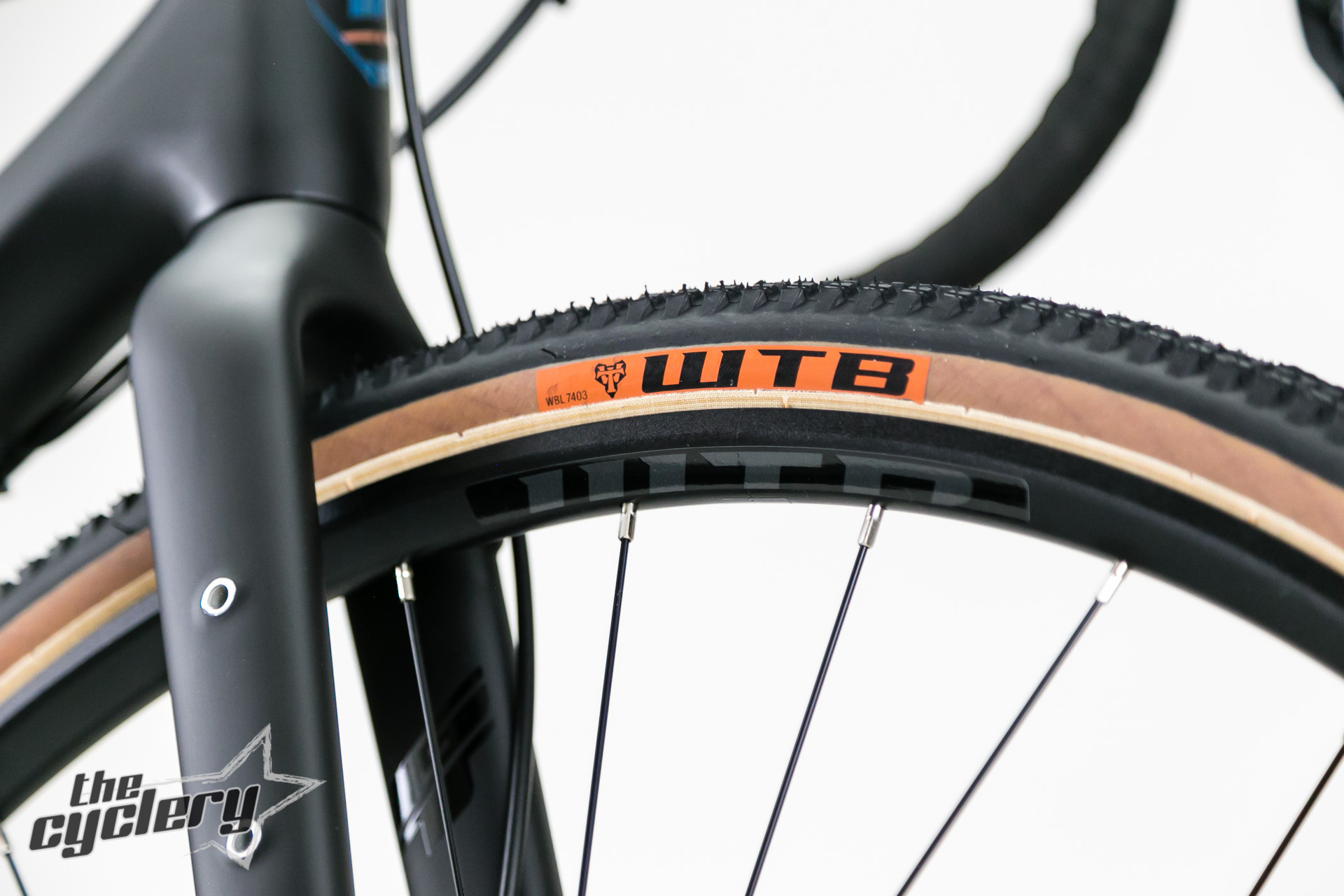

Rims: | WTB KOM Light i23 TCS, 28 hole, tubeless ready |

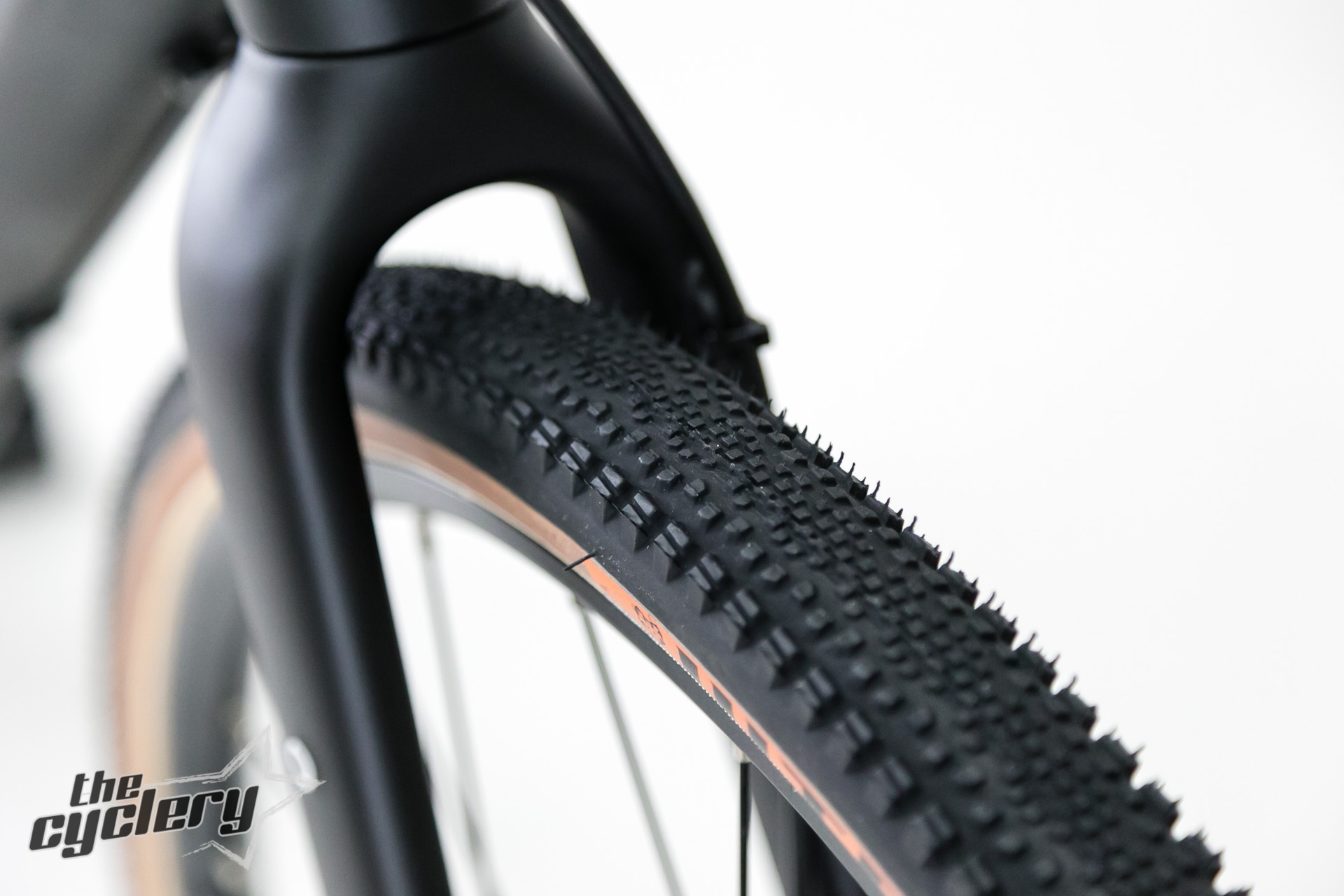

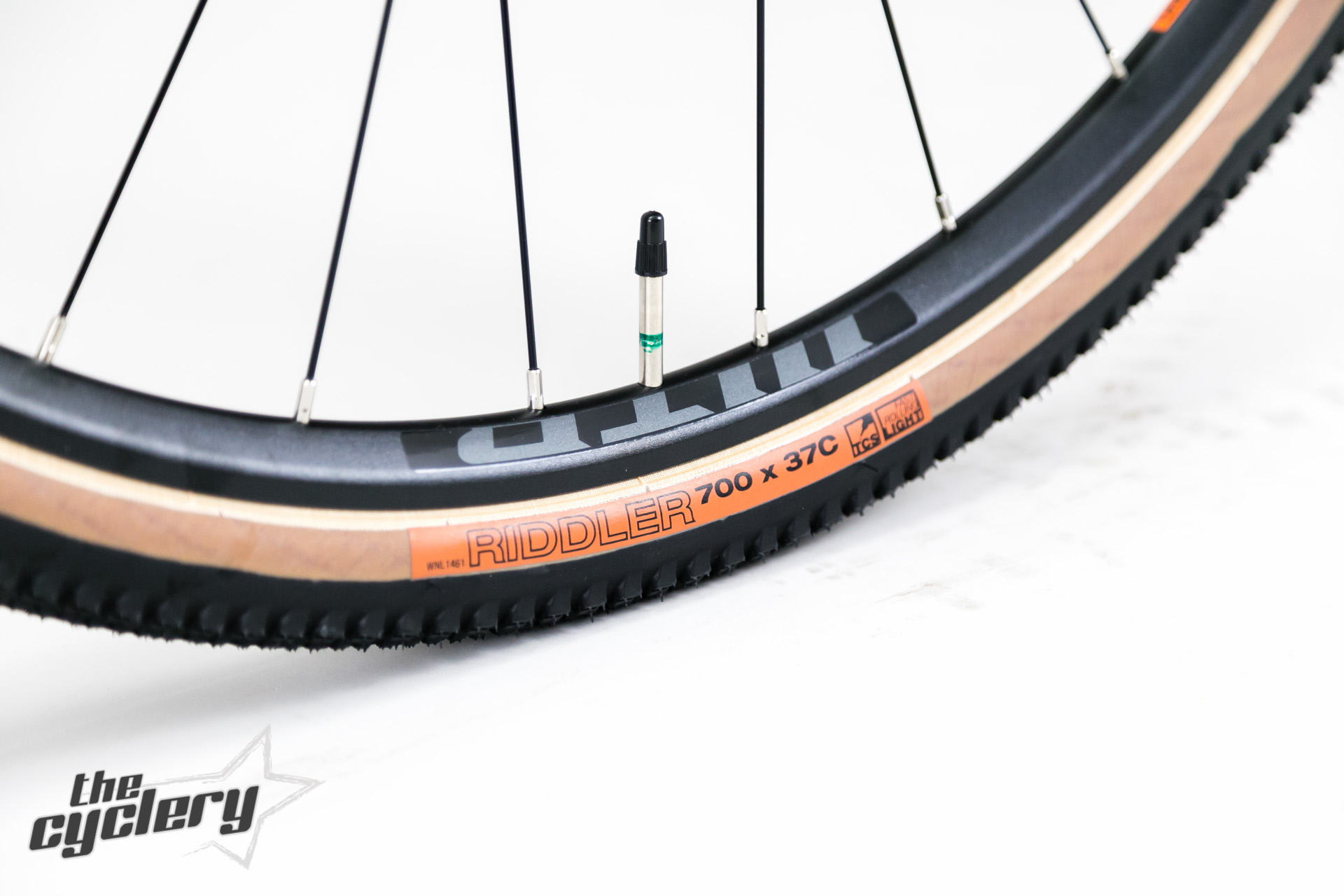

Tires: | WTB Riddler TCS Light, 700 x 37c, tubeless ready |
| |
Components | |

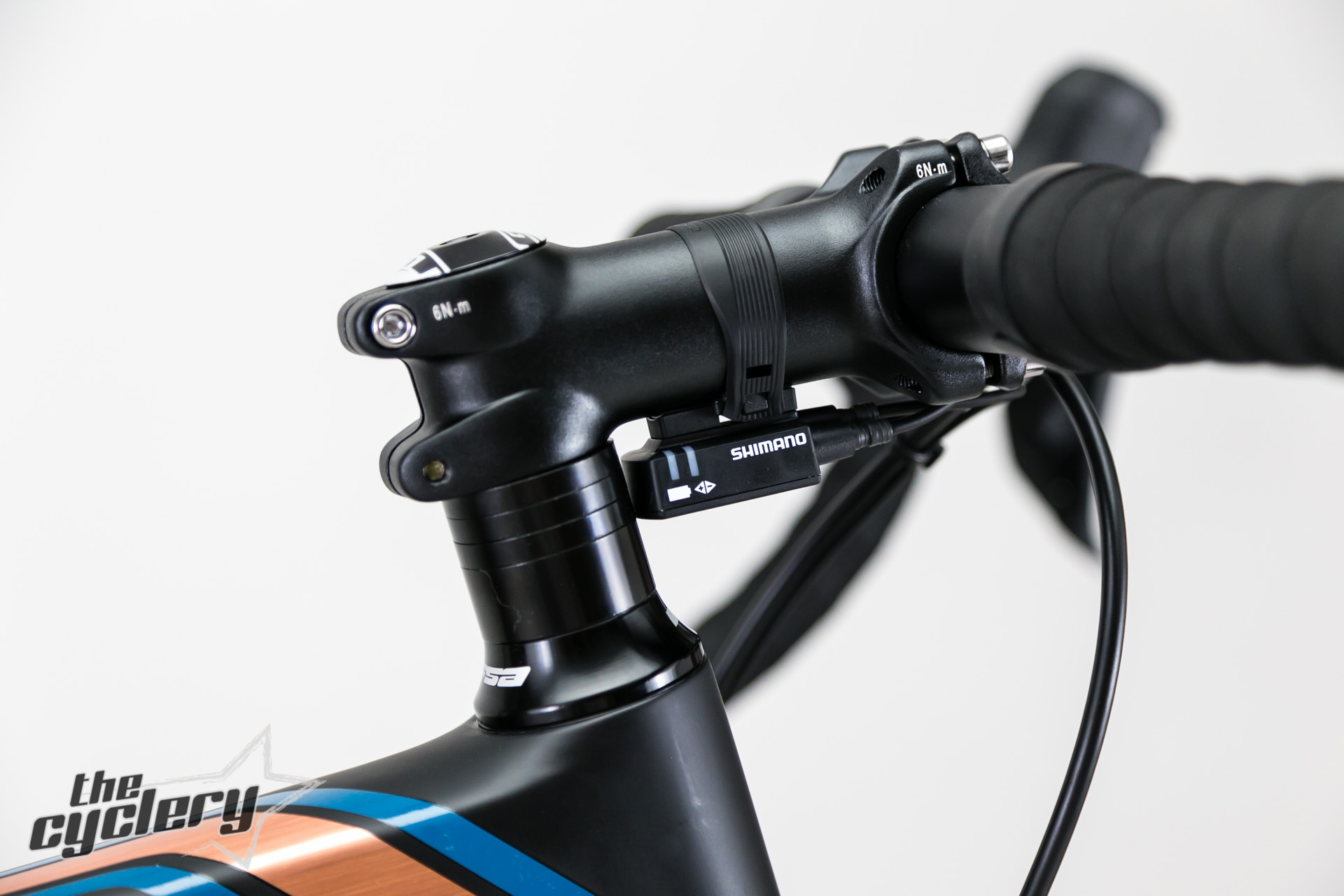

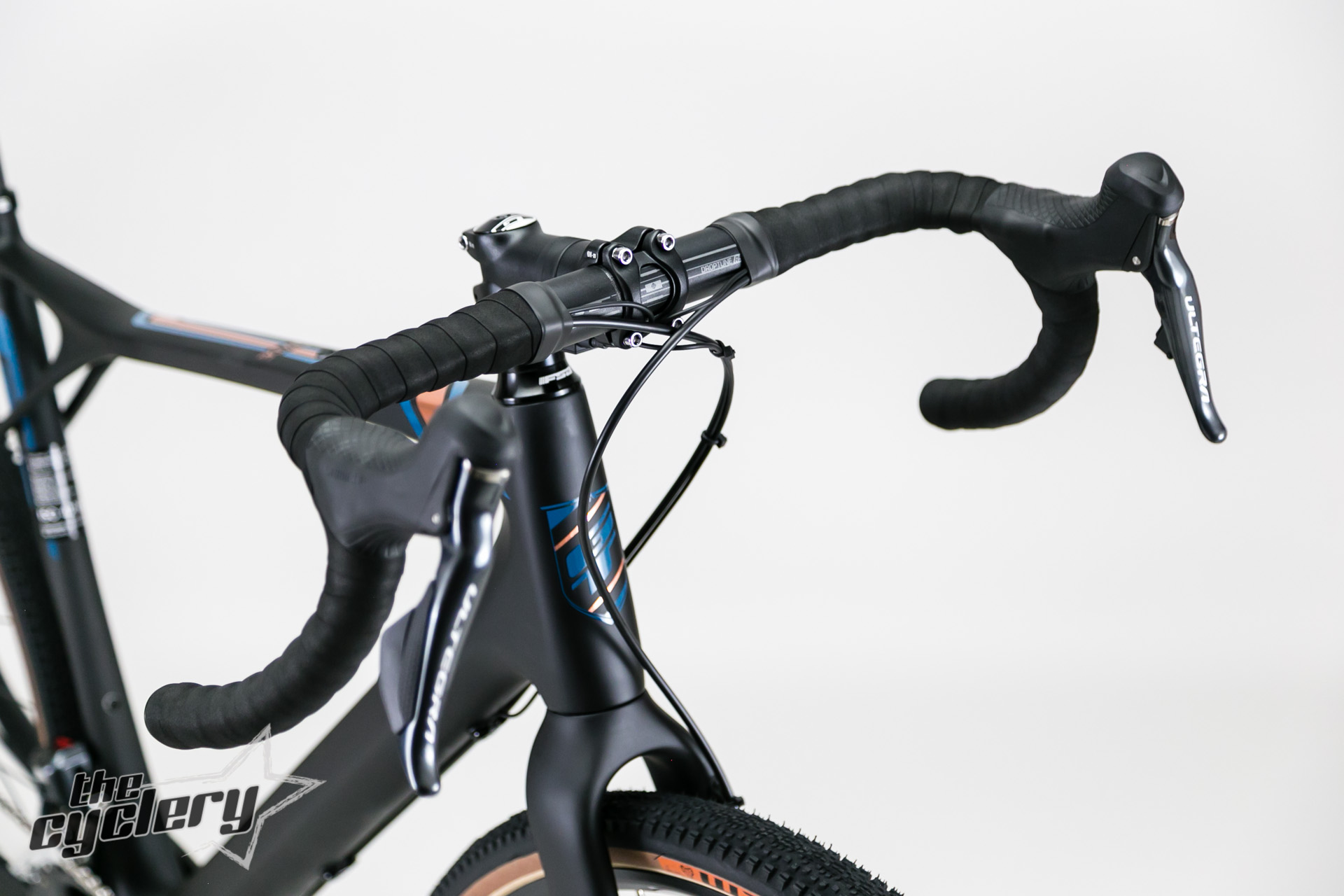

Stem: | GT Road Design, 3D-forged 6061 aluminum, 6° rise, 4-bolt clamp |

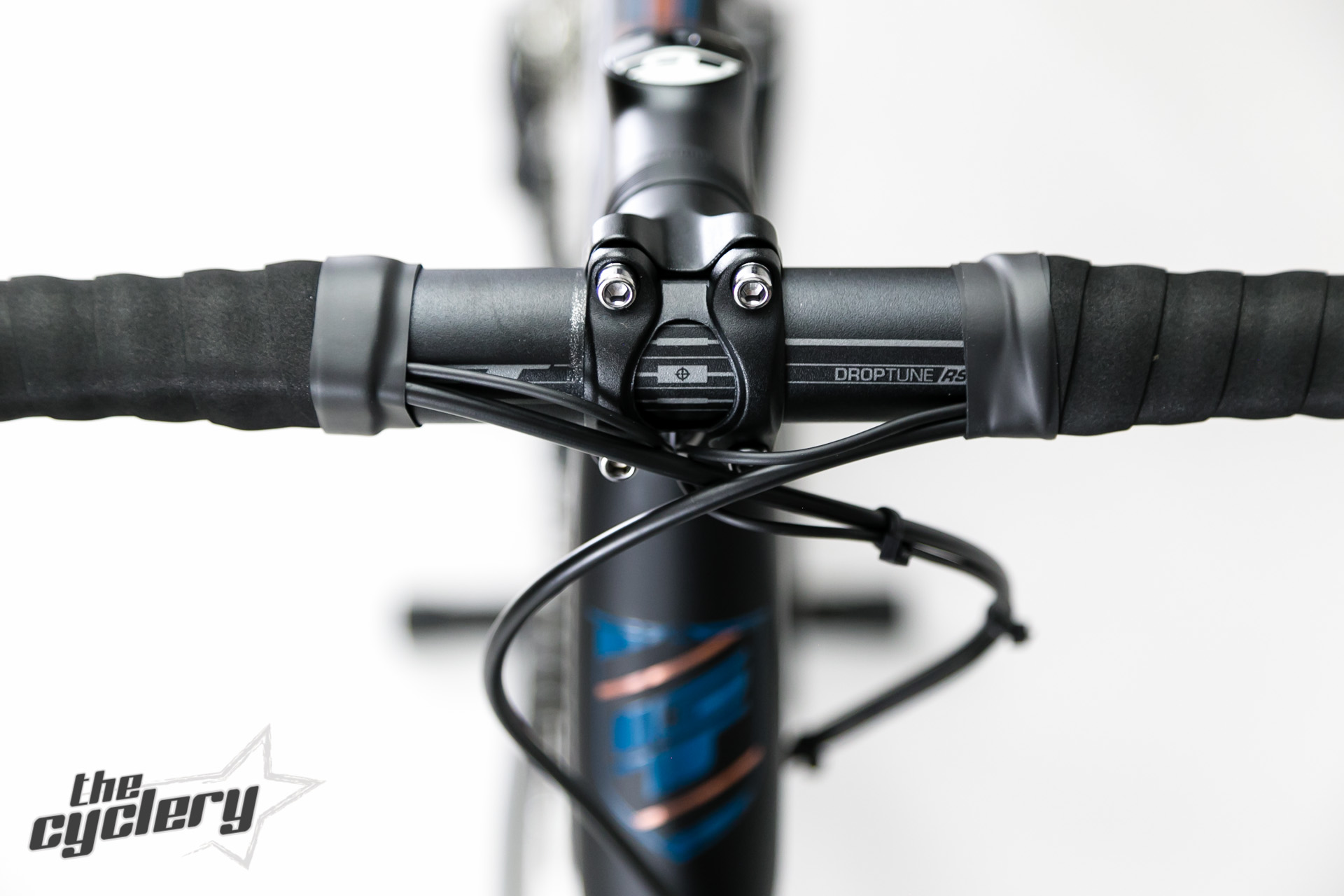

Handlebar: | New GT DropTune Super Light, double butted 6061 aluminum |
Headset: | FSA No. 44, sealed bearings |

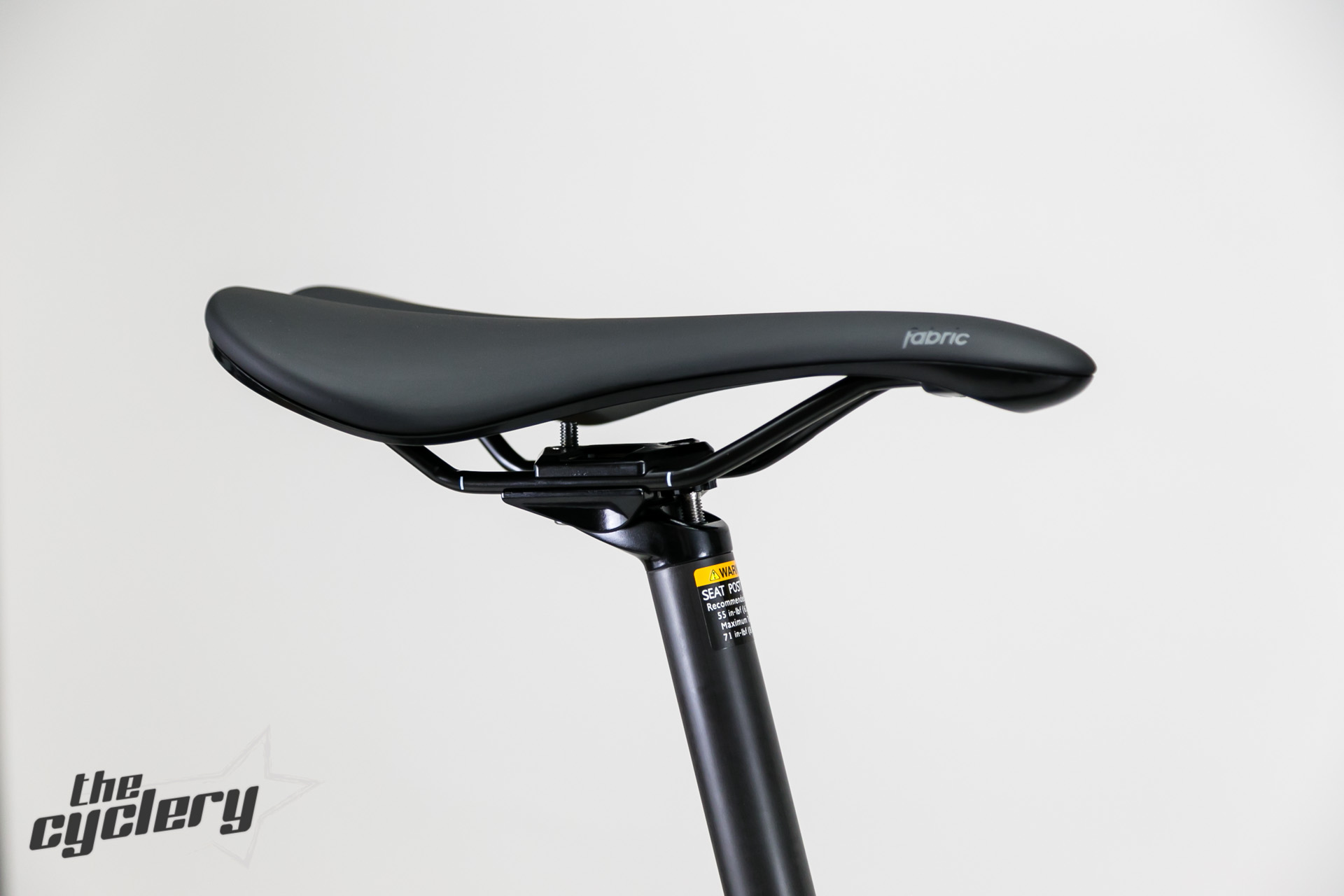

Saddle: | Fabric Scoop Shallow Elite, CroMo rails |
Seatpost: | GT Carbon, 27,2 x 350mm (48-58cm frame sizes)/27,2 x 400mm (61cm frame size) |
Other: | - |
| |
